Asus Prime Z390-A

Asus Prime Z390-A LGA1151 ATX DDR4 64 GB Motherboard

Asus Motherboard $197.41

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus Prime Z390-A is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and ASUS Optimum II for better DRAM overclocking stability

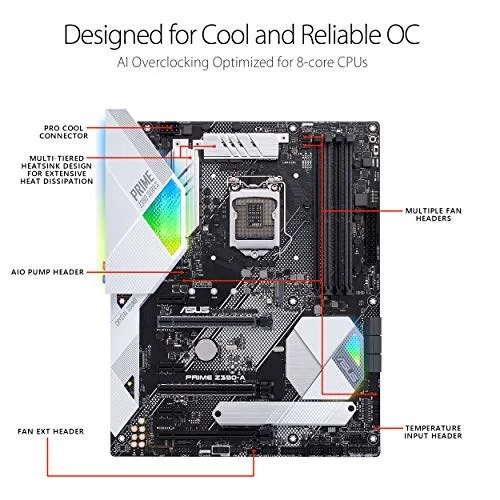

Revamped 5-Way Optimization that has the intelligence to overclock a CPU based on smart prediction and thermal telemetry
5X Protection III Hardware-level safeguards with Safe Slot Core, LAN Guard, Over voltage Protection provide longevity, reliability. FanXpert 4 delivers advanced fan control for dynamic system cooling
Patent-pending Safe Slot Core fortified PCIe slots prevent damage caused by heavyweight GPUs
8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec

Manufacturer	Asus
Model Number	Prime Z390-A 90MB0YT0-M0AAY0
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No

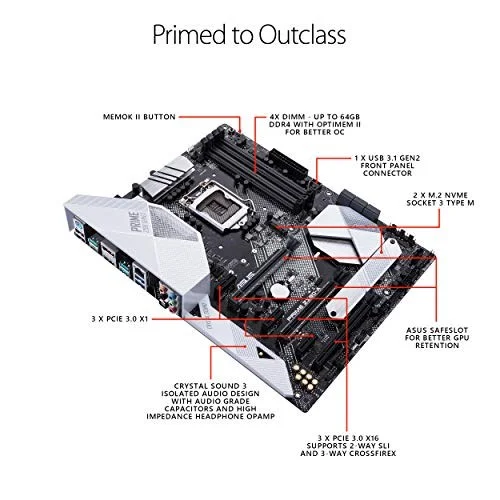

Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A

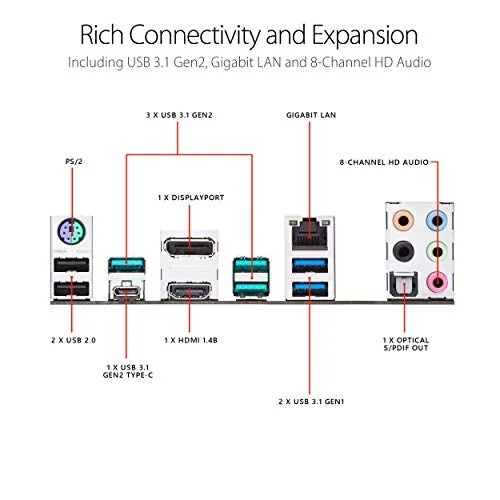

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Prime Z390-A
SKU Code	Prime Z390-A
GTIN / EAN	192876129692
