ASUS PRIME Z490M-PLUS

ASUS PRIME Z490M-PLUS LGA1200 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $226.5

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

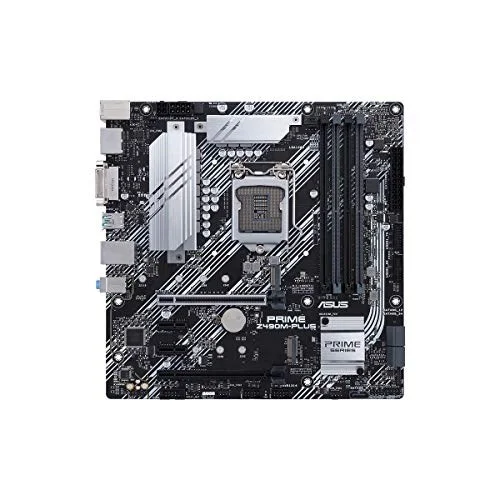

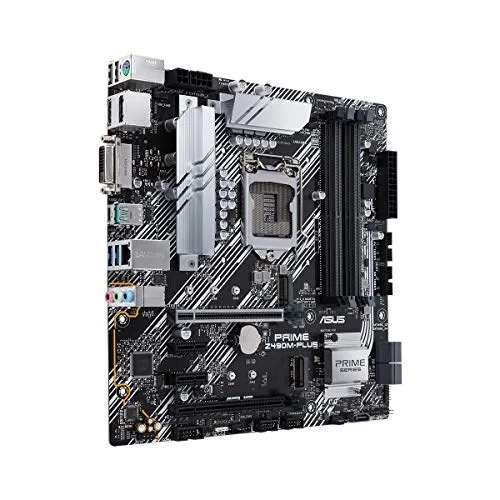

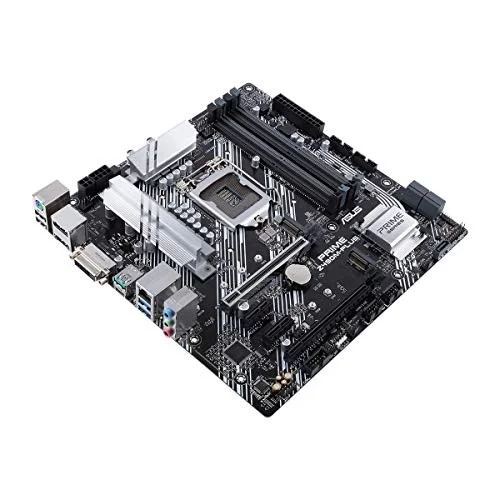

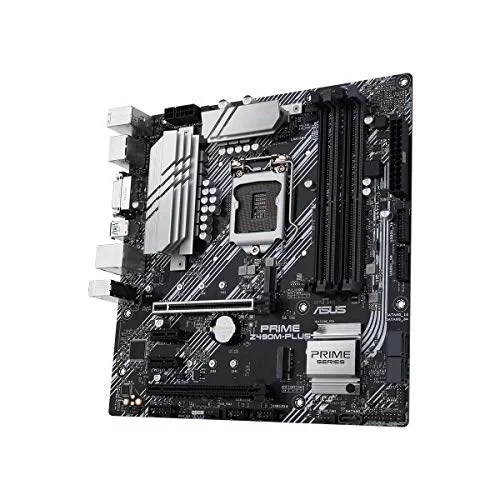

The ASUS PRIME Z490M-PLUS is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 4400 MT/s (OC).

Intel LGA 1200 Socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
Enhanced Power Solution: 8+1 DrMOS power stages, ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
Boosted Memory Performance: ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.
Ultrafast Connectivity: Dual M. 2, 1 Gb Ethernet, USB 3. 2 Gen 2 Type-A and Thunderbolt 3 support

Manufacturer	ASUS
Model Number	PRIME Z490M-PLUS 90MB12W0-M0EAY0
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	5 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME Z490M-PLUS
SKU Code	PRIME Z490M-PLUS
GTIN / EAN	192876667835
