ASUS PRIME Z690-A

ASUS PRIME Z690-A LGA1700 ATX DDR5 192 GB Motherboard

Asus Motherboard $209.73

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS PRIME Z690-A is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).

Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5

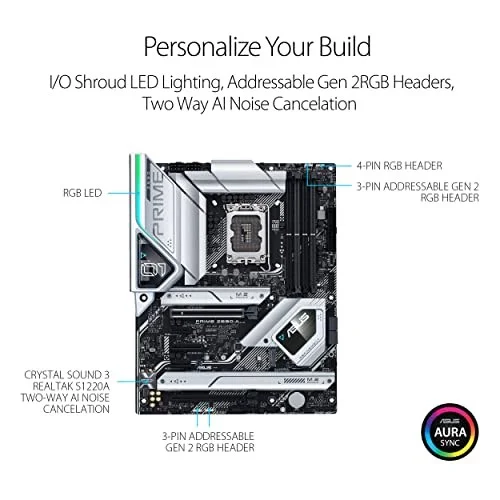

AI Motherboard : AI overclocking, AI cooling and Two-way AI noise cancellation

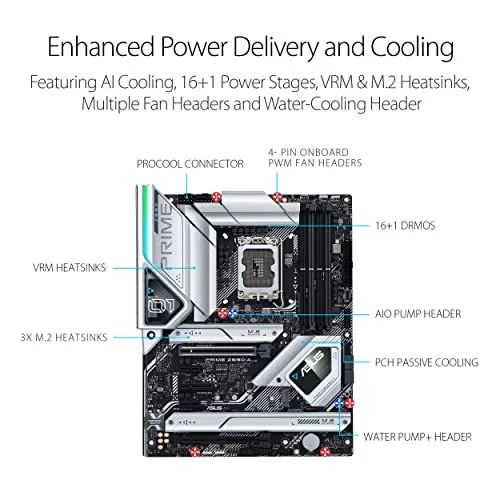

Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Comprehensive Cooling: Large VRM heatsink, M.2 heatsink, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4

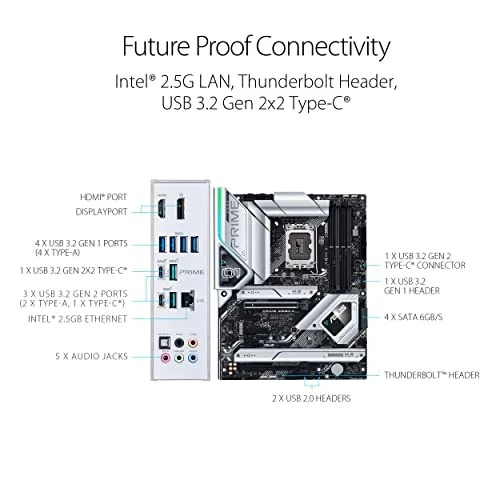

Next-gen connectivity: DDR5 memory, PCIe 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support

Manufacturer	ASUS
Model Number	PRIME Z690-A 90MB18L0-MVAAY0 90MB18L0-M0AAY0
Launch Date	November 2021
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC)
ECC Memory Support	No

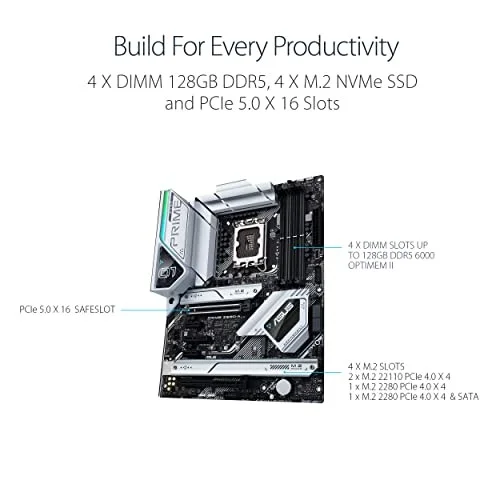

Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	2
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRIME Z690-A
SKU Code	PRIME Z690-A
GTIN / EAN	195553447324
