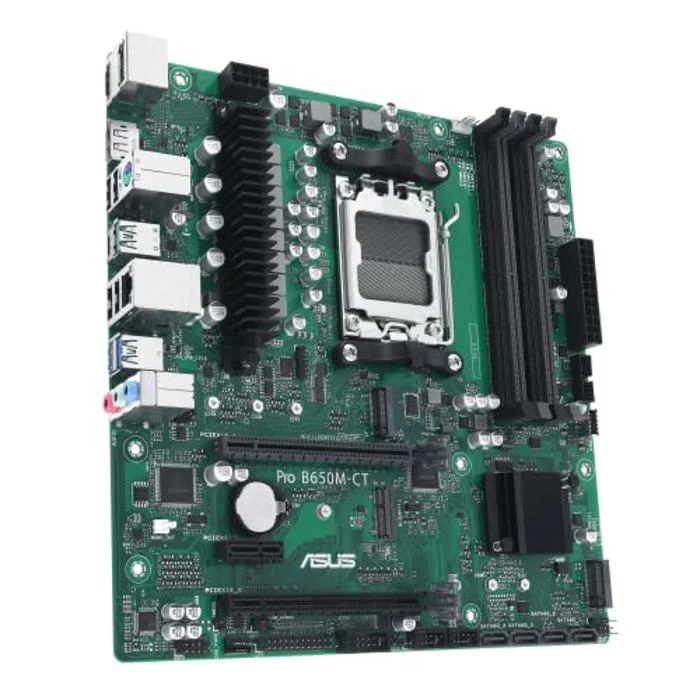

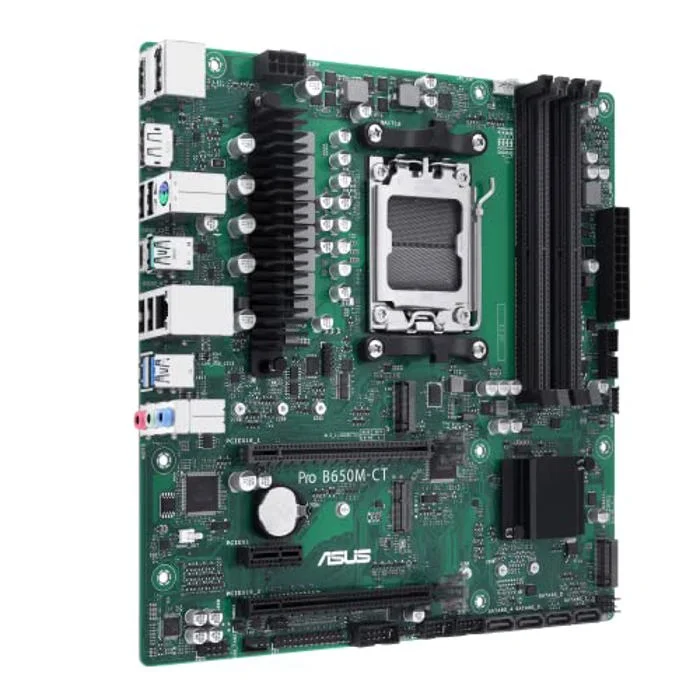

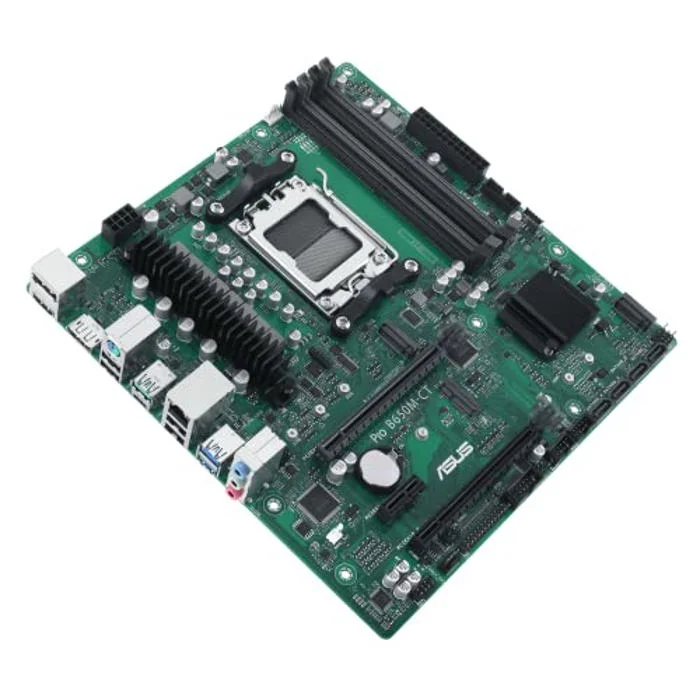

ASUS Pro B650M-CT-CSM

ASUS Pro B650M-CT-CSM AM5 Micro-ATX DDR5 192 GB Motherboard

Asus Motherboard $147.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Pro B650M-CT-CSM is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

AMD AM5 socket: Ready for AMD Ryzen 7000 Series Desktop processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration.
Enhanced system security: ASUS Boot Defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs.
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments.
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance.
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes.
Ultrafast connectivity: M.2 PCIe 5.0, DDR5, USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 Type-C

Manufacturer	ASUS
Model Number	Pro B650M-CT-CSM 90MB1EC0-M0AAYC
Launch Date	May 2023
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Pro B650M-CT-CSM
SKU Code	Pro B650M-CT-CSM
GTIN / EAN	197105164512
