Asus Pro B660M-C D4-CSM

Asus Pro B660M-C D4-CSM LGA1700 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $170.91

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

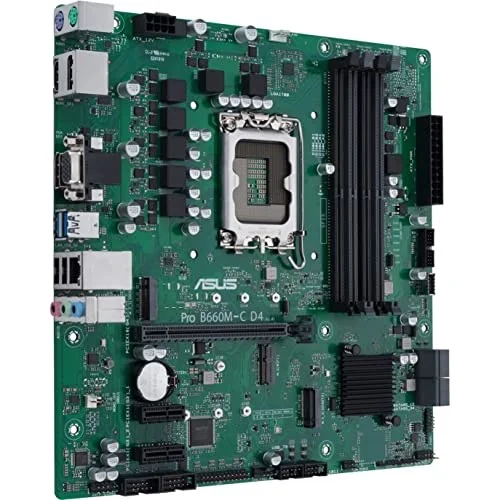

The Asus Pro B660M-C D4-CSM is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 5000 MT/s (OC).

Intel LGA 1700 Socket: Ready For 12Th Gen Intel Core, Pentium Gold And Celeron Processors
Ultrafast Connectivity : Pcie 4.0, Front USB 3.2 Gen 1 Type-C And Intel 1Gb Ethernet
ASUS-Exclusive Self-Recovering BIOS Technology For Automatic System BIOS Recovery From A Verified Backup
Supports SMBUS Header That Connects To A DASH LAN For Remote IT Management
ASUS CSM Motherboard: ASUS Corporate Stable Model, With Up To 36-Month Supply, EOL Notice & ECN Control
ASUS Control Center Express(ACCE) To Make IT Endpoint Management
ASUS Event Log For Capturing And Managing Detailed System Information
Dedicated LPC Header And Debug Card With LCD Display For Faster Troubleshooting
Innovative Moisture-Resistant Coating To Protect The Motherboard From Harsh Environment

Manufacturer	Asus
Model Number	Pro B660M-C D4-CSM 90MB19B0-MVAAYC 90MB19B0-MVAAY2 90MB19B0-M1AAYC
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Pro B660M-C D4-CSM
SKU Code	Pro B660M-C D4-CSM
GTIN / EAN	195553509435
