ASUS Pro-H510M-CT/CSM

ASUS Pro-H510M-CT/CSM LGA1200 Micro-ATX DDR4 64 GB Motherboard

Asus Motherboard $89.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetH510

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

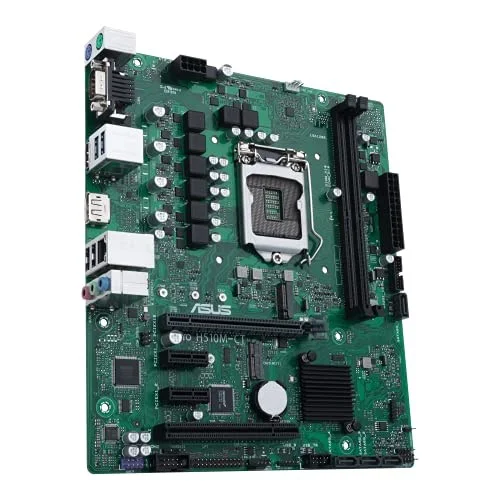

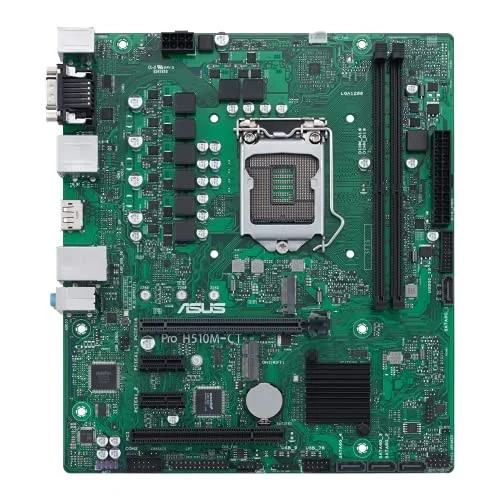

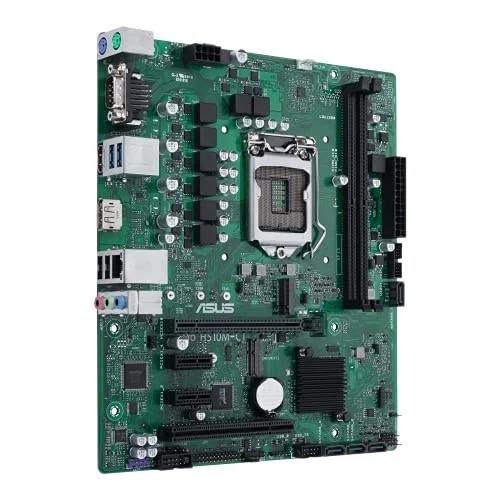

The ASUS Pro-H510M-CT/CSM is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 3200 MT/s (OC).

Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
1. ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
Supports SMBUS header that connects to a DASH LAN for remote IT management
ASUS COM debug header for more efficient troubleshooting
Event log for capturing and managing detailed system information
Innovative moisture-resistant coating to protect the motherboard from harsh environments
Commercial BIOS kit for faster and more efficient customization
ASUS Control Center Express (ACCE) for easier IT endpoint management
Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet and front header for USB 3.2 Gen 1 Type-C

Manufacturer	ASUS
Model Number	PRO H510M-CT/CSM 90MB17J0-MVAAYC
Launch Date	April 2021
CPU Socket	LGA1200
Chipset Model	Intel H510
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRO H510M-CT/CSM
SKU Code	PRO H510M-CT/CSM
GTIN / EAN	195553173230
