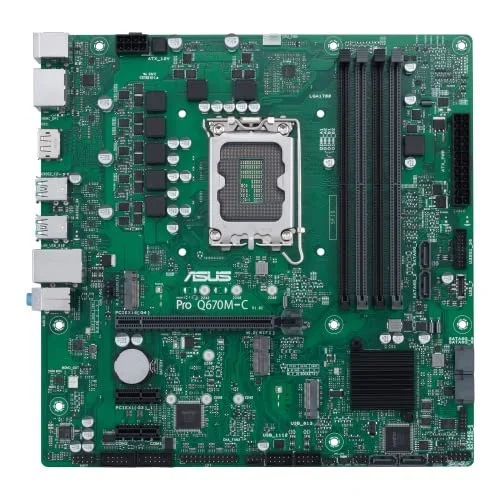

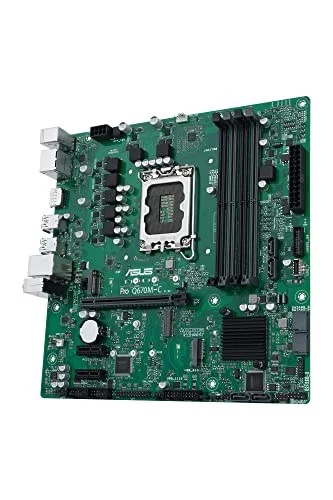

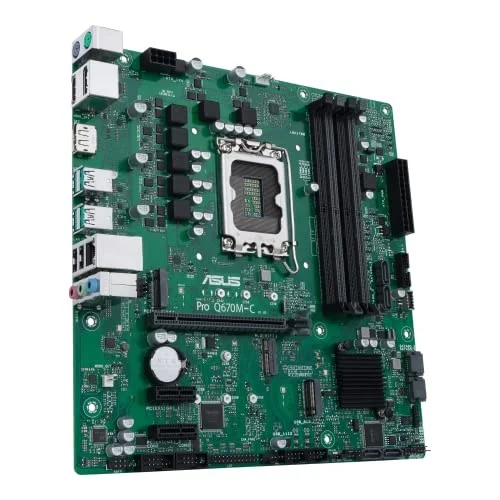

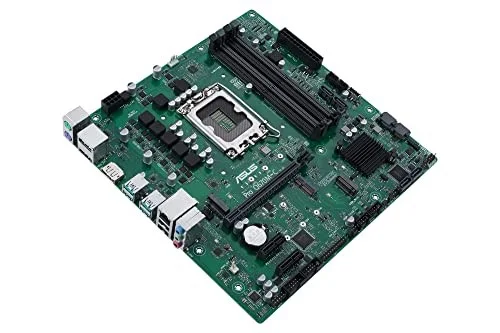

ASUS Pro Q670M-C-CSM

ASUS Pro Q670M-C-CSM LGA1700 Micro-ATX DDR5 128 GB Motherboard

Asus Motherboard $179.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetQ670

Form FactorMicro-ATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Pro Q670M-C-CSM is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 4800 MT/s (OC).

Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors
ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
ASUS COM debug header for more efficient troubleshooting
Event log for capturing and managing detailed system information
Innovative moisture-resistant coating to protect the motherboard from harsh environments
Commercial BIOS kit for faster and more efficient customization
ASUS Control Center Express (ACCE) for easier IT endpoint management
Ultrafast connectivity: PCIe 4.0, DDR5, USB 3.2 Gen 2 Type-A, front USB 3.2 Gen 1 Type-C and Intel 1Gb Ethernet
ASUS Boot Defender: Designed to automatically protect, detect and recover the boot environment against any intrusions and attacks
Q-LED Core display designed for troubleshooting potential issue during the Power-On Self-Test (POST)

Manufacturer	ASUS
Model Number	Pro Q670M-C-CSM 90MB19E0-M0AAYC 90MB19E0-MVAAYC 90MB19E0-M2AAYC
Launch Date	March 2022
CPU Socket	LGA1700
Chipset Model	Intel Q670
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Pro Q670M-C-CSM
SKU Code	Pro Q670M-C-CSM
GTIN / EAN	195553518383
