ASUS Pro WS TRX50-SAGE WIFI

ASUS Pro WS TRX50-SAGE WIFI sTR5 SSI CEB DDR5 1024 GB Motherboard

Asus Motherboard $899.87

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTR5

ChipsetTRX50

Form FactorSSI CEB

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Pro WS TRX50-SAGE WIFI is a SSI CEB motherboard for sTR5. It supports DDR5 memory up to 6800 MT/s (OC).

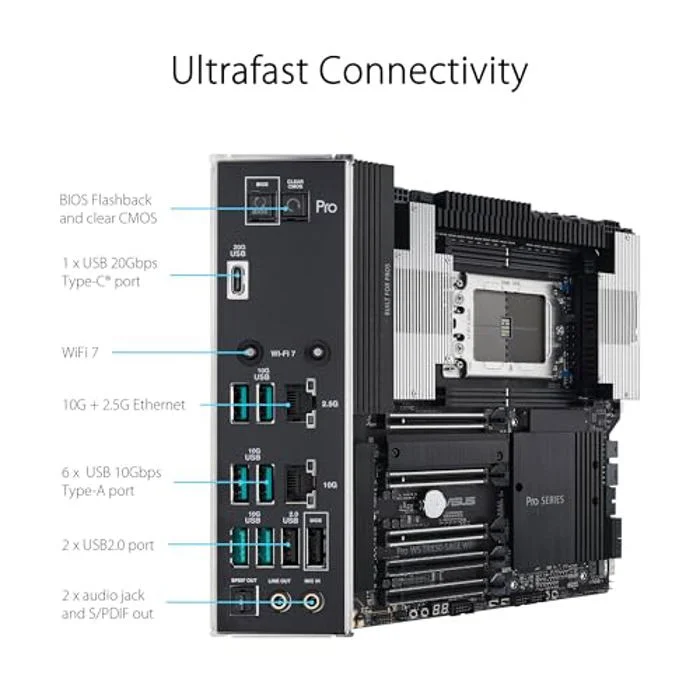

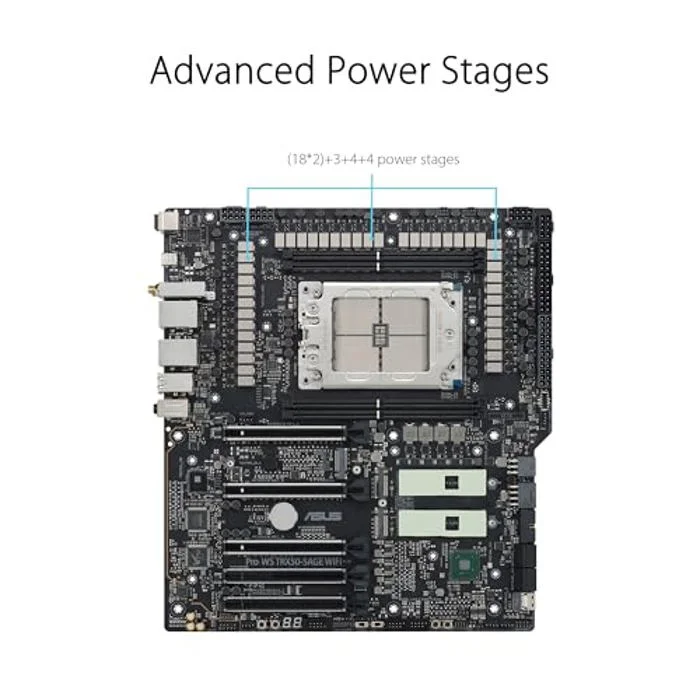

ASUS Pro WS TRX50-SAGE WIFI CEB Workstation motherboard, AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors,ECC R-DIMM DDR5, 36 power-stage, WiFi 7,PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support. Number of Memory Slots: 4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Memory Standard: DDR5, ECC Registered Memory Audio Channels: Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Feat…

Manufacturer	ASUS
Model Number	PRO WS TRX50-SAGE WIFI 90MB1FZ0-M0AAY0
Launch Date	November 2023
CPU Socket	sTR5
Chipset Model	TRX50
Board Size / Form Factor	SSI CEB
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	1024 GB
Valid DDR4 Speeds	DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller

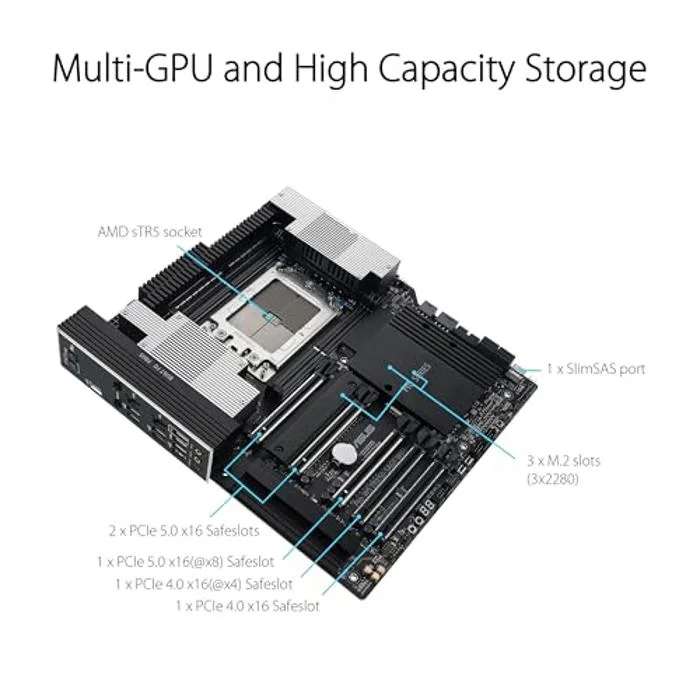

Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRO WS TRX50-SAGE WIFI
SKU Code	PRO WS TRX50-SAGE WIFI
GTIN / EAN	197105402720
