ASUS Pro WS WRX80E-SAGE SE WiFi II

ASUS Pro WS WRX80E-SAGE SE WiFi II sWRX8 SSI EEB DDR4 2048 GB Motherboard

Asus Motherboard $999

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsWRX8

ChipsetWRX80

Form FactorSSI EEB

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

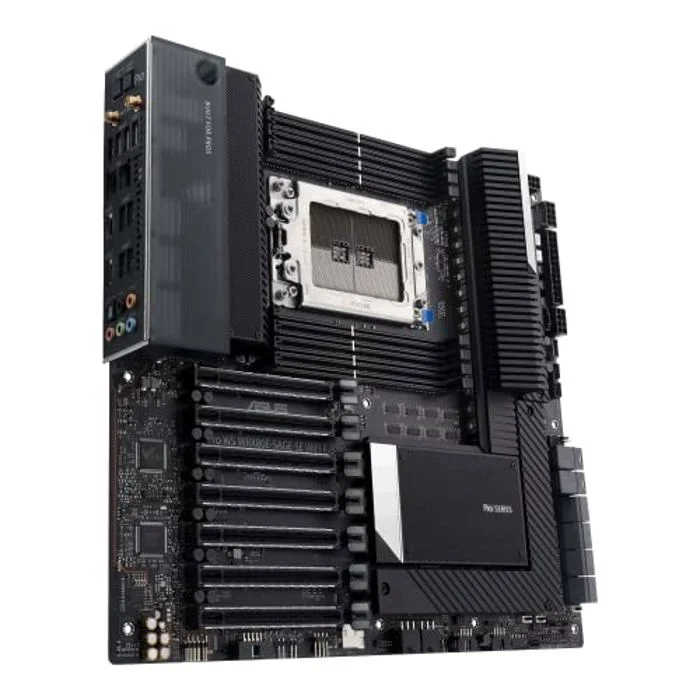

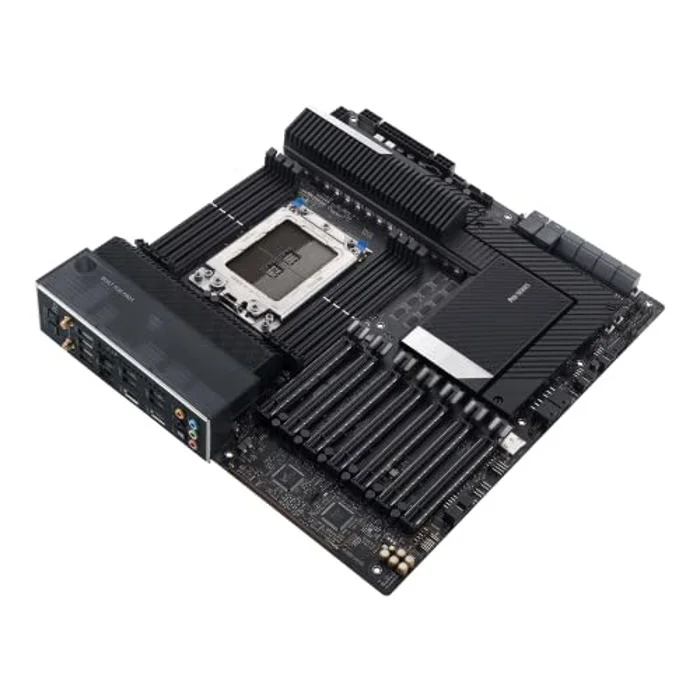

The ASUS Pro WS WRX80E-SAGE SE WiFi II is a SSI EEB motherboard for sWRX8. It supports DDR4 memory up to 3200 MT/s (OC).

AMD sWRX8 socket: Ready for AMD Ryzen Threadripper PRO Series Processors

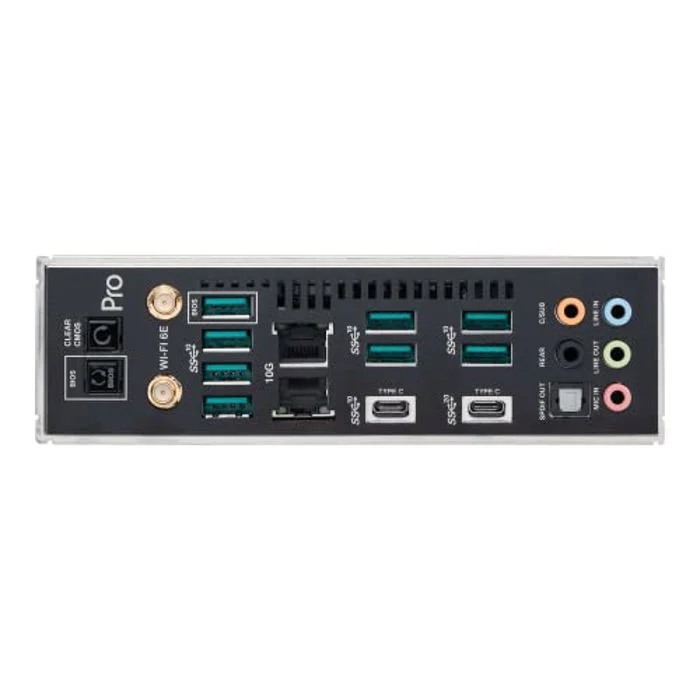

Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card, and Intel X550-AT2 dual 10Gb Ethernet, WiFi 6E.
ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
Powerful performance: 16 power stages, multi-GPU support, and R-DIMM memory support
Trusted stability: Tested for 24/7 dependability, validated for solid compatibility, and equipped with SafeSlot for ultimate security

Manufacturer	ASUS
Model Number	Pro WS WRX80E-SAGE SE WIFI II 90MB1E60-M0AAY0
Launch Date	March 2023
CPU Socket	sWRX8
Chipset Model	WRX80
Board Size / Form Factor	SSI EEB
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	2048 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	7 × PCIe x16
PCIe x16 (Qty)	7
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Pro WS WRX80E-SAGE SE WIFI II
SKU Code	Pro WS WRX80E-SAGE SE WIFI II
GTIN / EAN	197105020863
