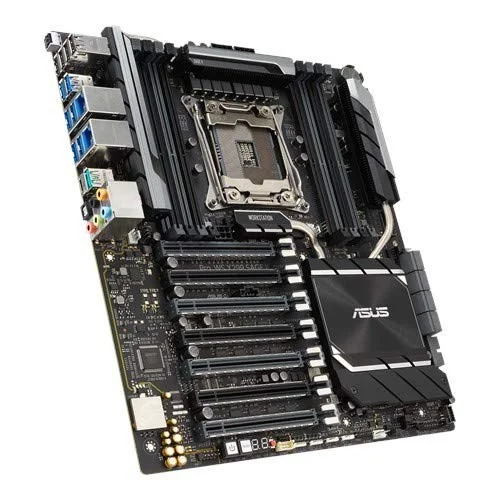

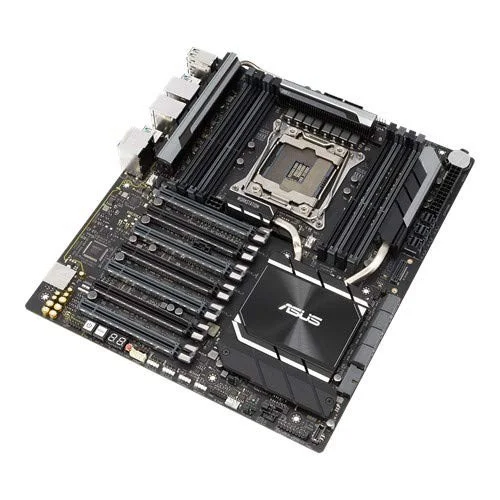

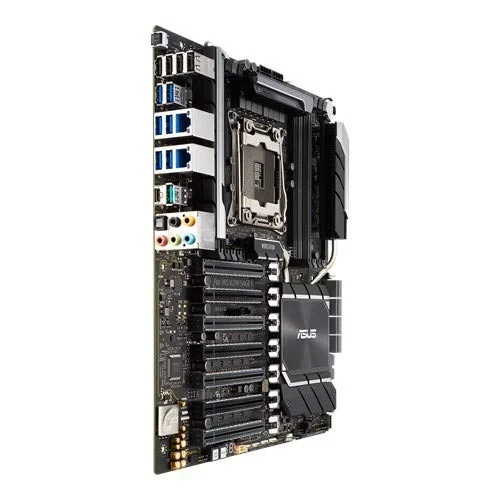

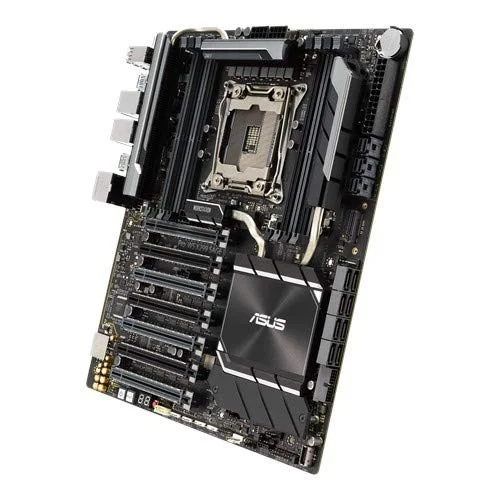

ASUS PRO WS X299 SAGE II

ASUS PRO WS X299 SAGE II LGA2066 SSI CEB DDR4 256 GB Motherboard

Asus Motherboard $739.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorSSI CEB

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS PRO WS X299 SAGE II is a SSI CEB motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).

Intel LGA 2066 Socket: Ready For The Latest Intel Core X Processors.
AI Overclocking: Quickly Optimizes CPU Performance By Profiling The CPU And The Cooler To Achieve Results That Are Very Close To Manual Tuning By Experts.
Dual Intel 2.5G LAN: Provides Increased Data Throughput And Improved Efficiency, Making It Ideal For Large File Transfers And Backups
Supports Up To 4-Way Graphics Cards: Contains 7 Pcie Gen 3 X16 Slots And Supports NVIDIA SLI And AMD Crossfire

Manufacturer	ASUS
Model Number	PRO WS X299 SAGE II 90SW00U0-M0AAY0
Launch Date	September 2020
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	SSI CEB
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3600 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	7 × PCIe x16
PCIe x16 (Qty)	7
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRO WS X299 SAGE II
SKU Code	PRO WS X299 SAGE II
GTIN / EAN	192876322369
