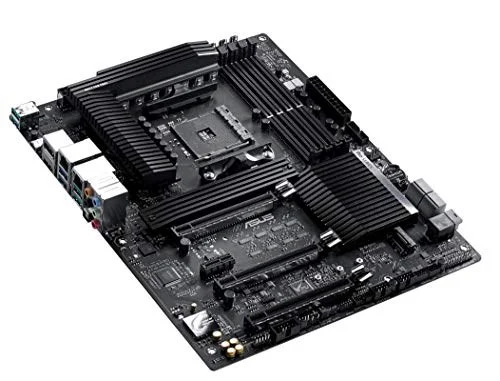

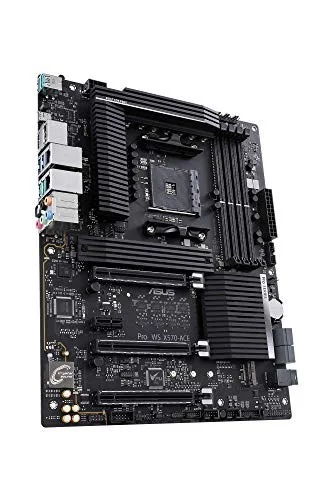

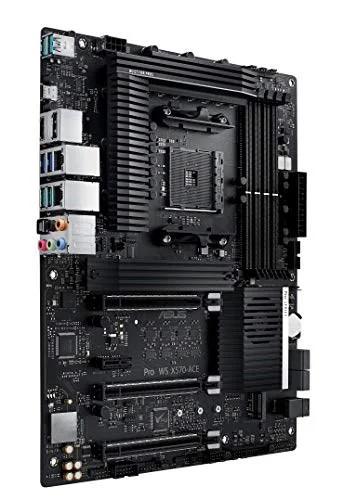

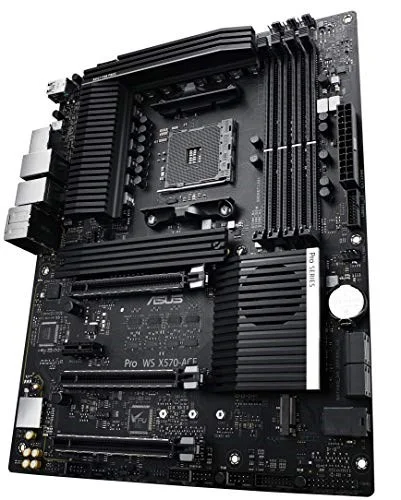

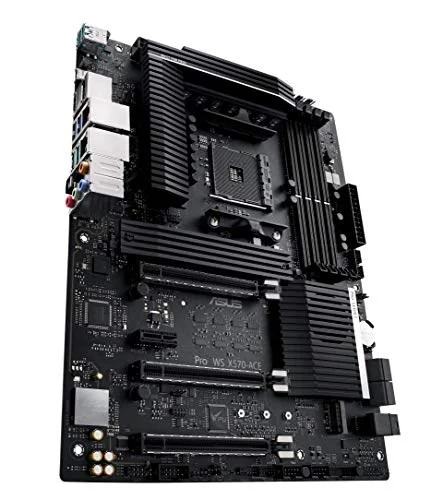

ASUS PRO WS X570-ACE

ASUS PRO WS X570-ACE AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $269.17

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS PRO WS X570-ACE is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

Three PCIe 4.0 x16 slots with optimized lane arrangement of 3-way x8/x8/x8 to accelerate an increasingly diverse array of workloads
Reliable and responsive ECC memory suitable for mission critical tasks
ASUS Control Centre Express: A software utility equipped with a GbE LAN controller for out-of-band management to enhance hardware-level control for improved IT efficiency
Ultra-fast storage: Up to 64Gbps M.2 & 32Gbps U.2, plus up to 10Gbps back-panel USB 3.2 Gen 2 with Type-A and Type-C ports
Ultra-efficient VRM heatsink: Beefy heatsinks, heatpipe, and built-in PCH fan design maximizes surface area for heat dissipation to enable unthrottled performance

Manufacturer	ASUS
Model Number	PRO WS X570-ACE 90MB11M0-M0EAY0 90MB11M0-M0AAY0
Launch Date	July 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PRO WS X570-ACE
SKU Code	PRO WS X570-ACE
GTIN / EAN	192876322710
