ASUS ProArt B550-Creator

ASUS ProArt B550-Creator AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $226.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ProArt B550-Creator is a ATX motherboard for AM4. It supports DDR4 memory up to 4866 MT/s (OC).

AMD AM4 Socket: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Processors

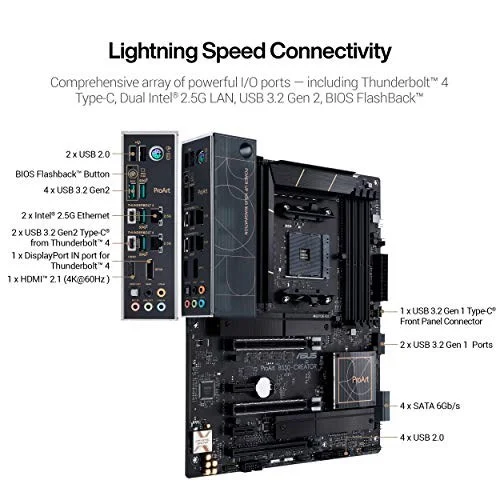

Powerful I/O: Dual Thunderbolt 4 Type-C Ports, Dual 2.5G Onboard Ethernet, Four USB3.2 Gen 2@Back IO

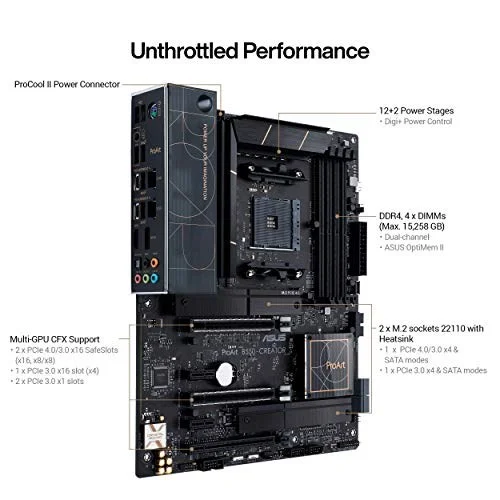

Un-Throttled Performance: PCI 4.0 Ready For Speedy Data Transfer, 12+2 Power Stages To Support The Latest AMD Ryzen Processors
Industry-Leading Security: USB Port Management, Software Blacklist, Regedit Enabled/Disabled Via ASUS Control Center Express

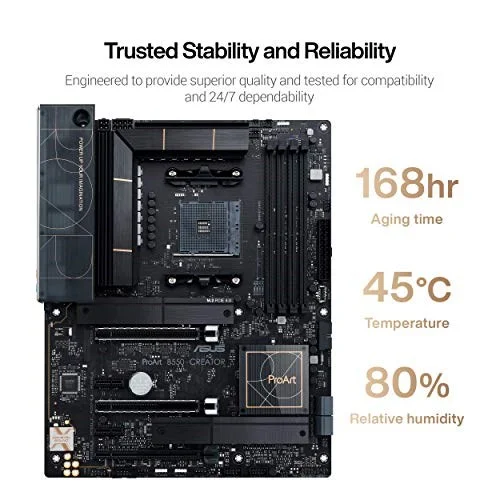

Trusted Stability: Tested For 24/7 To Ensure Robustness, Validated For Solid Compatibility And Equipped With Safeslot For Durability

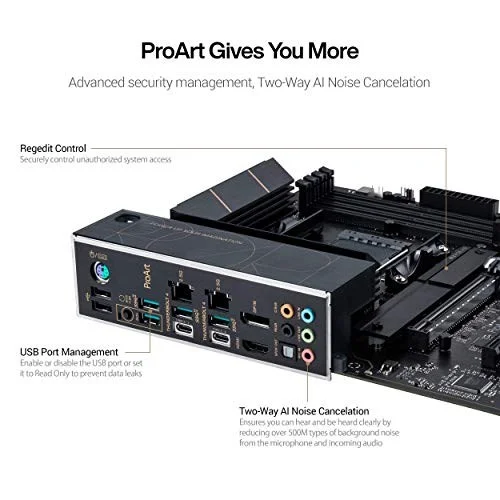

Proart Gives You More: Two-Way AI Noise Cancelation To Fit WHF Scenario, Creator Hub + Creationfirst For A Unified User Experience

Manufacturer	ASUS
Model Number	PROART B550-CREATOR 90MB17L0-M0EAY0 90MB17L0-M0AAY0
Launch Date	March 2021
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4866 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PROART B550-CREATOR
SKU Code	PROART B550-CREATOR
GTIN / EAN	195553147088
