ASUS ProArt B650-Creator

ASUS ProArt B650-Creator AM5 ATX DDR5 128 GB Motherboard

Asus Motherboard $229.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ProArt B650-Creator is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

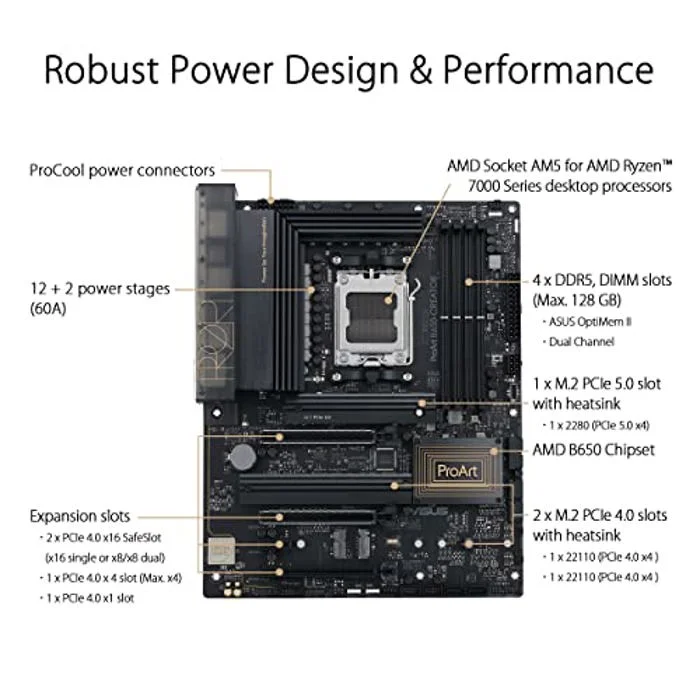

AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors

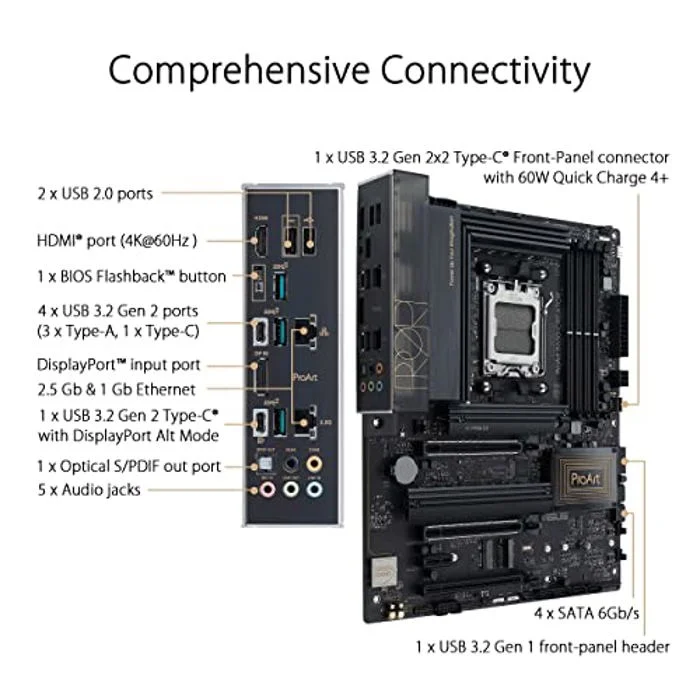

Future-proofed connectivity: 2.5 Gb&1Gb Ethernet, two PCIe 4.0x16 and 1xPCIe 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+, USB4 Support,DisplayPort via USB-C
Networking: 2.5 Gb and 1 Gb Ethernet, WiFi module onboard/ M.2 Slot (Key E)
Exclusive overclocking technologies: AI Overclocking, Dynamic OC Switcher, and Ryzen Core Flex
ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control
Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express

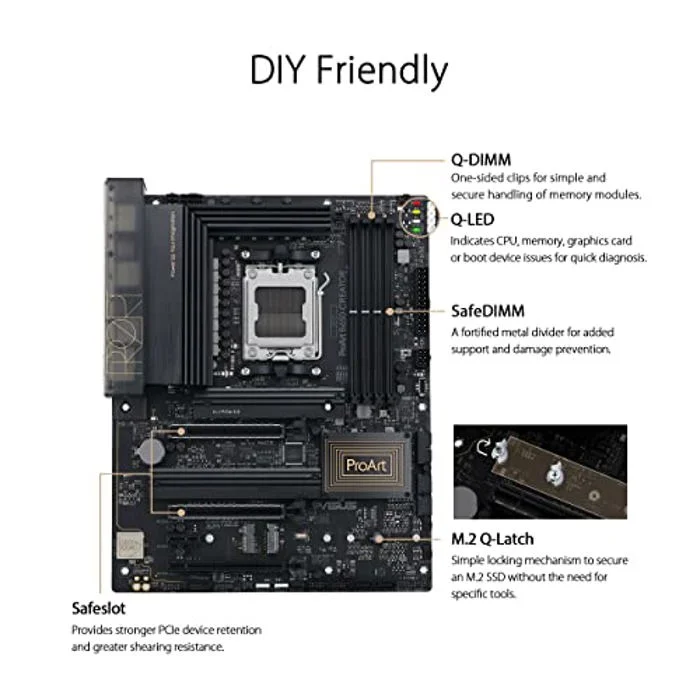

Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability

Manufacturer	ASUS
Model Number	PROART B650-CREATOR 90MB1C40-M0AAY0 90MB1C40-M0EAY0
Launch Date	December 2022
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PROART B650-CREATOR
SKU Code	PROART B650-CREATOR
GTIN / EAN	195553988094
