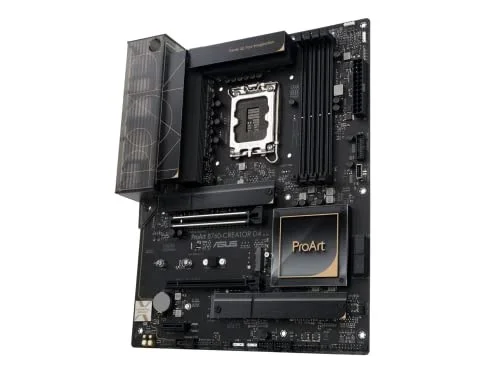

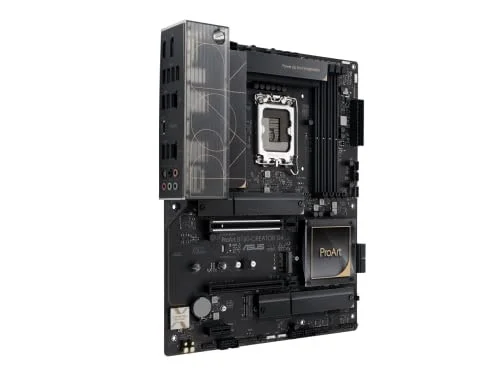

ASUS PROART B760-CREATOR D4

ASUS PROART B760-CREATOR D4 LGA1700 ATX DDR4 128 GB Motherboard

Asus Motherboard $149.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB760

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS PROART B760-CREATOR D4 is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5066 MT/s (OC).

Intel LGA 1700 socket: Ready for 12th&13th Gen Intel Core processors, support PCIe 5.0,and out of box Windows 11 ready
Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, Thunderbolt header support and a USB 3.2 Gen 2x2 front panel connector
Next-gen performance: 12+1 power stages rated for 50 amps, PCIe 5.0 ready
Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express
Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability

Manufacturer	ASUS
Model Number	PROART B760-CREATOR D4 90MB1DU0-M0EAY0 90MB1DU0-M0AAY0
Launch Date	January 2023
CPU Socket	LGA1700
Chipset Model	Intel B760
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5066 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	4 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	PROART B760-CREATOR D4
SKU Code	PROART B760-CREATOR D4
GTIN / EAN	197105017856
