ASUS ProART Z490-CREATOR 10G LGA1200 ATX DDR4 128 GB Motherboard

Asus Motherboard $259.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ProART Z490-CREATOR 10G is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).

Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

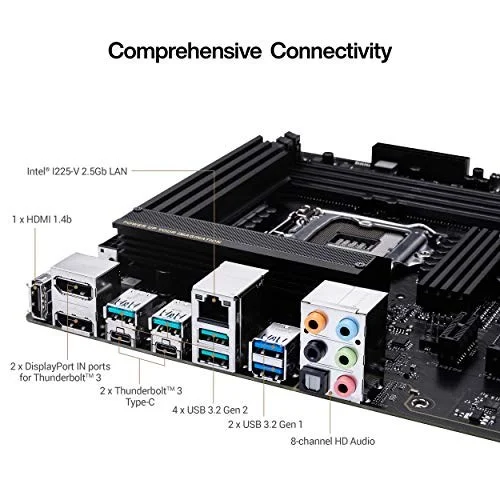

Ultrafast Connectivity For Seamless Speed : Two Thunderbolt 3 Type-C Ports, Dual M. 2, HYPER 10G LAN Card And Onboard 2. 5G Intel LAN

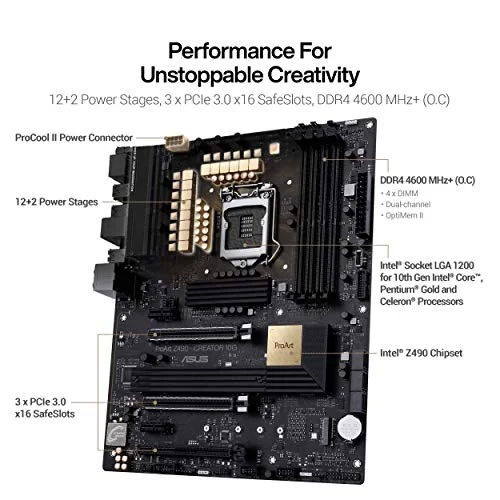

Powerful Performance For Unstoppable Creativity : Reliable Power Design With 12+2 Drmos Power Stages, Multi-GPU Support And ASUS Optimem II Memory Trace Layout Improves Memory Stability And Compatibility

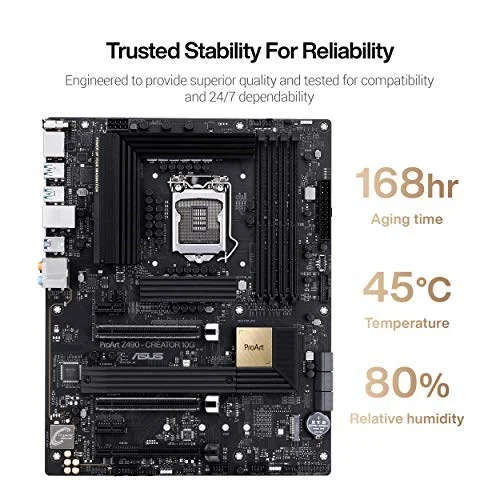

Unshakable Stability: Tested For 24/7 Dependability, Validated For Solid Compatibility And Equipped With Safeslot For Durability
Proart Creator Hub: Centralized Software For One-Stop Monitoring And Management Of ASUS Proart Series Products Enables Efficient Content Creation Workflows

Manufacturer	ASUS
Model Number	ProART Z490-CREATOR 10G 90MB14E0-M0EAY0 90MB14E0-M0AAY0
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ProART Z490-CREATOR 10G
SKU Code	ProART Z490-CREATOR 10G
GTIN / EAN	192876703243
