ASUS ProArt Z690 CREATOR WIFI

ASUS ProArt Z690 CREATOR WIFI LGA1700 ATX DDR5 192 GB Motherboard

Asus Motherboard $549.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

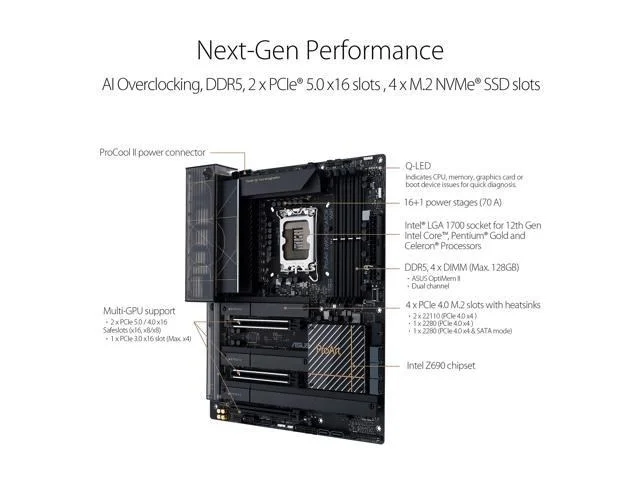

The ASUS ProArt Z690 CREATOR WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).

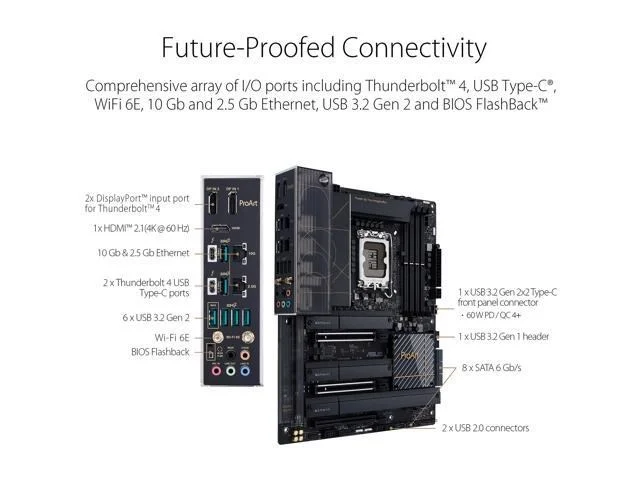

ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support) Memory Standard: DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * memory frequency support depends on the CPU types. Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC PCI Express 5.0 x16: 2 x PCI Express 5.0 x16 * Actual support may vary by CPU. PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 * Supports Intel Optane Memory H Series on PCH-attached PCIE slot. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10Gbps + 10/100/1000/2500Mbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel Core desktop …

Manufacturer	Asus
Model Number	ProArt Z690-CREATOR WIFI 90MB19H0-M0EAY0 Z690-CREATOR WIFI 90MB19H0-M0AAY0
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ProArt Z690-CREATOR WIFI
SKU Code	ProArt Z690-CREATOR WIFI
GTIN / EAN	4711081460749
