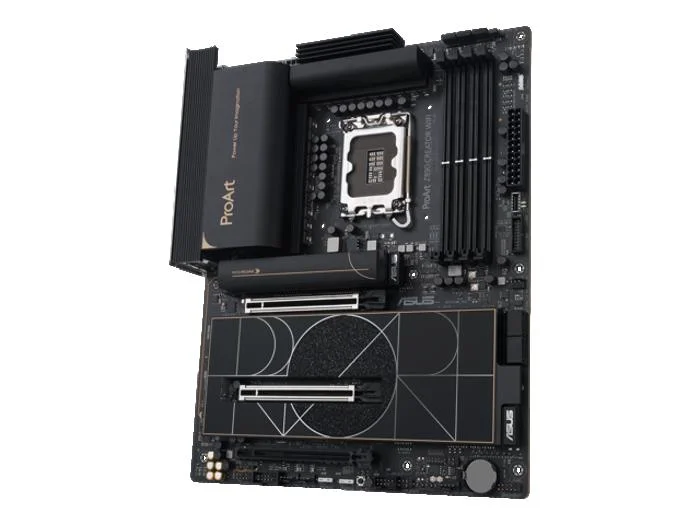

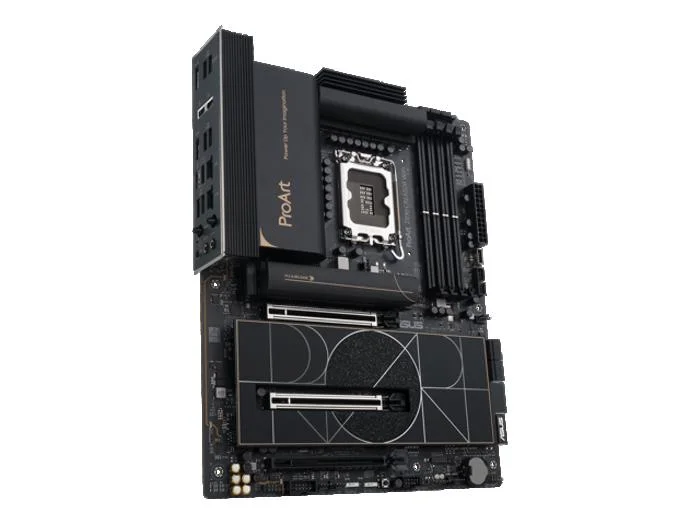

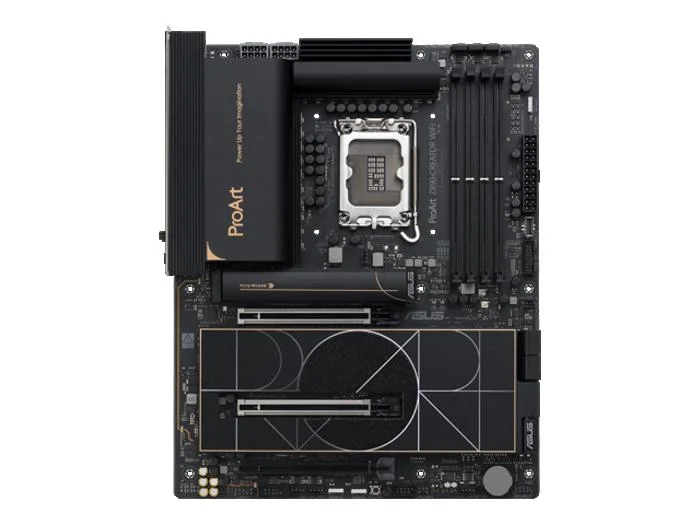

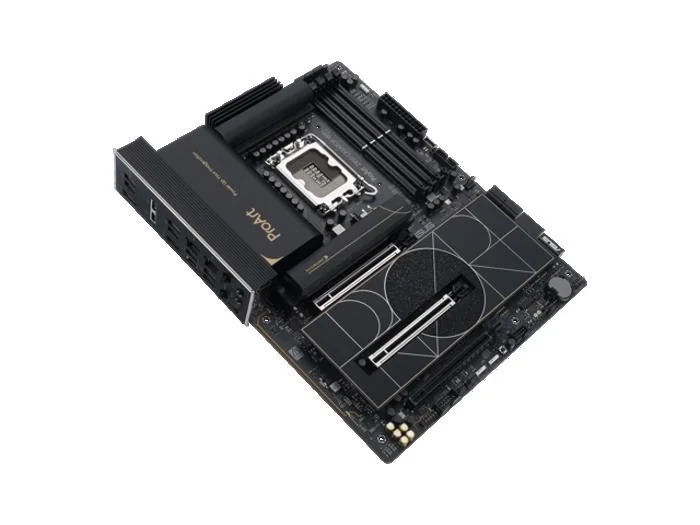

Asus ProArt Z890-CREATOR WIFI

Asus ProArt Z890-CREATOR WIFI LGA1851 ATX DDR5 256 GB Motherboard

Asus Motherboard $489.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetZ890

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ProArt Z890-CREATOR WIFI is a ATX motherboard for LGA1851. It supports DDR5 memory up to 8600 MT/s (OC).

ASUS ProArt Z890-CREATOR WIFI Z890 LGA 1851 ATX Motherboard, Intel Core Ultra Processor Series 2 Ready, 16+2+1+2 stages, PCIe 5.0, DDR5, Thunderbolt 5 Type-C, 10+2.5 Gb LAN, WiFi 7, 5x M.2, AI OC Memory Standard: DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC1220P PCI Express 5.0 x16: Intel Core Ultra Processors (Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) PCI Express 4.0 x16: Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) Max LAN Speed: 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 192GB

Manufacturer	Asus
Model Number	ProArt Z890-CREATOR WIFI 90MB1JD0-M0AAY0
Launch Date	October 2024
CPU Socket	LGA1851
Chipset Model	Intel Z890
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ProArt Z890-CREATOR WIFI
SKU Code	ProArt Z890-CREATOR WIFI
GTIN / EAN	197105766167
