ASUS ROG Crosshair VII Hero (Wi-Fi)

ASUS ROG Crosshair VII Hero (Wi-Fi) AM4 ATX DDR4 64 GB Motherboard

Asus Motherboard $328.51

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX470

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Crosshair VII Hero (Wi-Fi) is a ATX motherboard for AM4. It supports DDR4 memory up to 3466 MT/s (OC).

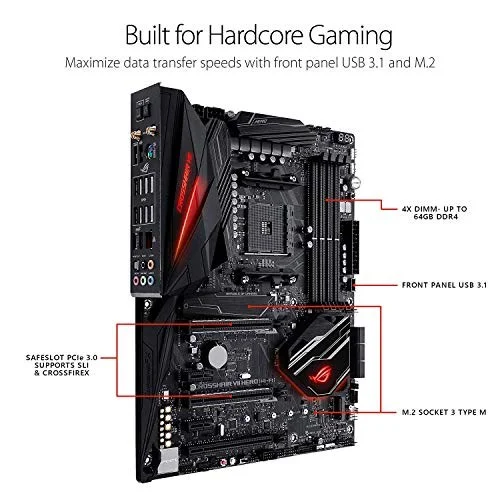

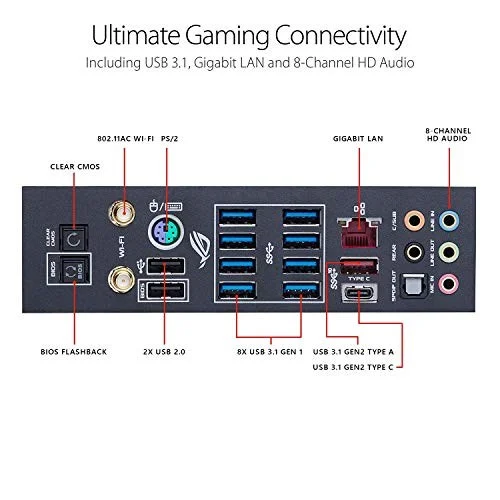

Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, onboard 802.11ac Wi-Fi, front panel USB 3.1 Gen2 and gigabit LAN

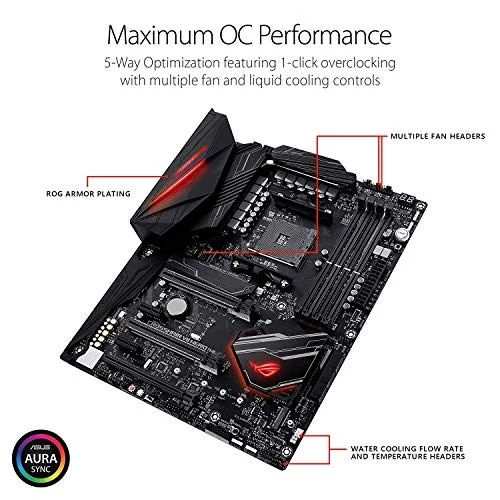

5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance with external clock generator.Form Factor
ATX Form Factor(Inches) : 12 x 9.6

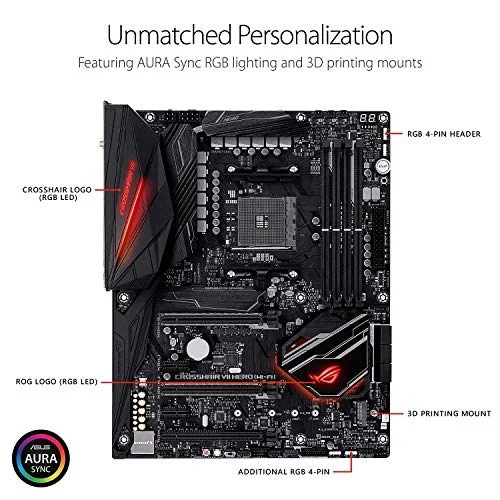

Aura Sync RGB lighting with two addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products. Operating System - Windows 10 64-bit.Windows 7 64-bit *7
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality. Wireless Data Network : Wi-Fi 802.11 a/b/g/n/ac. Supports dual band frequency 2.4/5 GHz
Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220 driven by Japanese capacitors

Manufacturer	Asus
Model Number	Crosshair VII Hero (Wi-Fi) ROG Crosshair VII Hero (Wi-Fi)
Launch Date	April 2018
CPU Socket	AMD Socket AM4
Chipset Model	AMD X470
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Crosshair VII Hero (Wi-Fi)
SKU Code	Crosshair VII Hero (Wi-Fi)
GTIN / EAN	889349976289
