ASUS ROG Crosshair VIII Dark Hero

ASUS ROG Crosshair VIII Dark Hero AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $412.71

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Crosshair VIII Dark Hero is a ATX motherboard for AM4. It supports DDR4 memory up to 4866 MT/s (OC).

AMD AM4 Socket: Ready For 2Nd, 3Rd Gen AMD Ryzen Processors And 3Rd Gen AMD Ryzen Processors

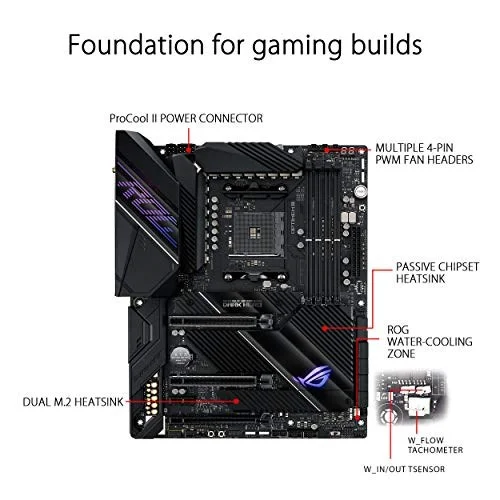

Comprehensive Thermal Design: Passive Chipset Heatsink, M.2 Aluminum Heatsinks And ROG Water Cooling Zone.

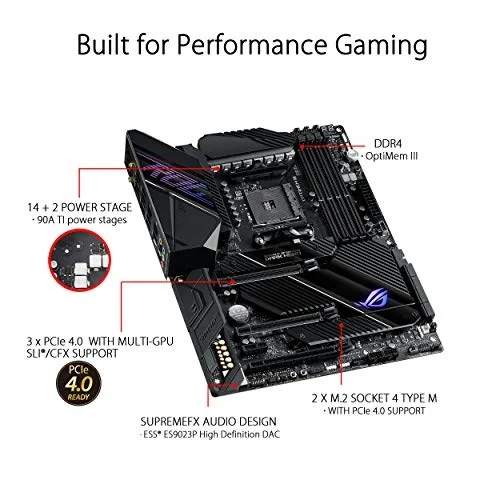

Robust Power Delivery: Designed Power Solution 14+2 TI Power Stages Rated For 90A, Procool II Power Connectors, Microfine Alloy Chokes And 10K Japanese-Made Black Metallic Capacitors

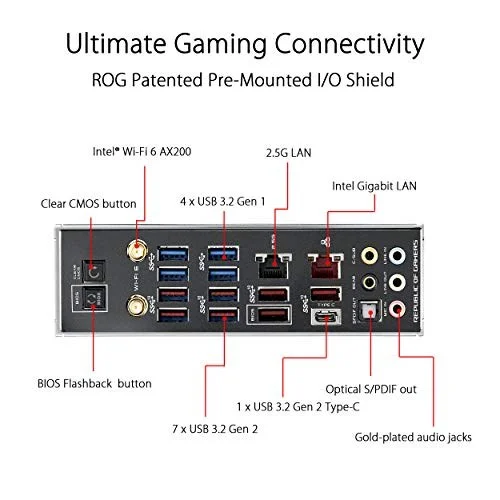

High-Performance Connectivity: On-Board Wi-Fi 6 (802.11Ax) With MU-MIMO Support, 2.5 Gbps Ethernet And Gigabit Ethernet, USB 3.2 Gen 2 Type-C
DIY Friendly Design: Pre-Mounted I/O Shield, ASUS Safeslot, BIOS Flashback And Premium Components For Maximum Endurance.

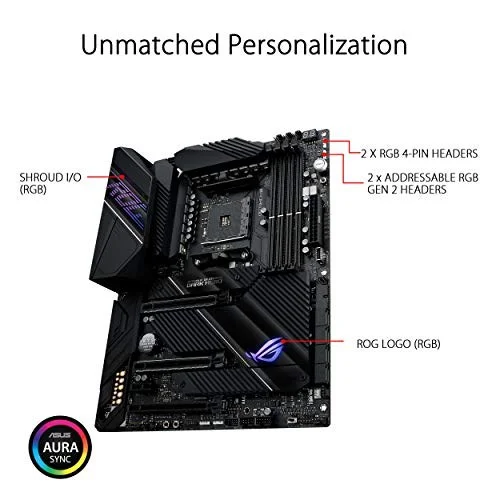

Unmatched Personalization: ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen. 2 Addressable Headers
Industry-Leading ROG Audio: ROG Supremefx S1220 Is Combined With The Venerable ESS ES9023P To Deliver High-Fidelity Audio To Headsets And Exotic Cans.
Please Ensure Your BIOS Is Up To Date If Installing A Compatible Ryzen 5000 Series CPU. Visit ASUS Site Search By Motherboard Model Name, Click On “Support” Tab, Drivers And Tools, Then BIOS & Firmware To Download The Latest BIOS.

Manufacturer	ASUS
Model Number	ROG Crosshair VIII Dark Hero Crosshair VIII Dark Hero 90MB1760-M0EAY0 90MB1760-M0AAY0
Launch Date	November 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4666 / DDR4-4800 / DDR4-4866 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG Crosshair VIII Dark Hero
SKU Code	ROG Crosshair VIII Dark Hero
GTIN / EAN	192876961629
