ASUS ROG Crosshair VIII Impact

ASUS ROG Crosshair VIII Impact AM4 Mini DTX DDR4 64 GB Motherboard

Asus Motherboard $332.62

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorMini DTX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Crosshair VIII Impact is a Mini DTX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).

Amd Am4 Socket: Ready For 2Nd, And 3Rd Gen Amd Ryzen Processors And Upto Two M.2 Drives, USB 3.2 Gen2, And Amd Storemi To Maximize Connectivity And Speed
Mini DTX Form Factor: 8.0 Inch X 6.7 Inch, 1 Inch Taller Than Mini Itx Fits Into Any Mini Itx Chassis That Support Two Slot Graphic Cards

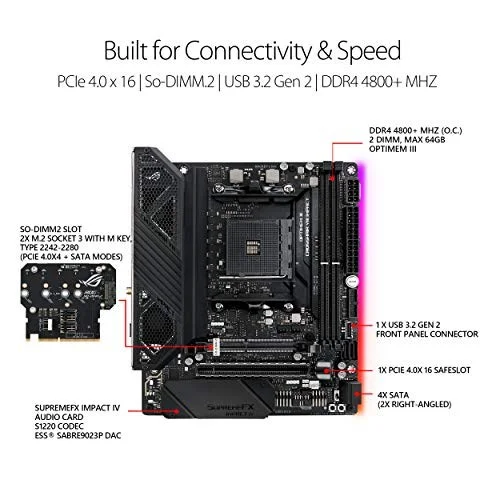

Superb Performance: Support Pcie 4.0, 10 Teamed Up Power Stages, 4800+ Ghz DDR4 Memory Overclocking Performance With Optic Mem III

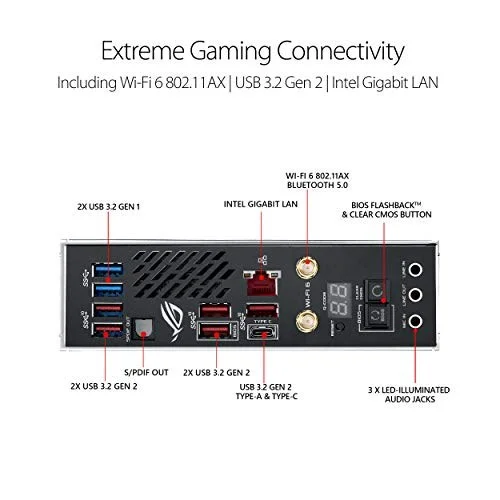

Next Gen Gaming Connectivity: On Board Wi Fi 6 (802.11Ax) With Mu Mimo Support And Intel Gigabit Ethernet With Asus Languard Supports Gamefirst V Technology
Comprehensive Cooling Solution: Features An Actively Cooled Vrm And Chipset Combo Heatsink Supplemented By A Full Sized Aluminum Backplate And Rog Water Cooling Zone Easy Integration With A Custom Water Cooling Loop

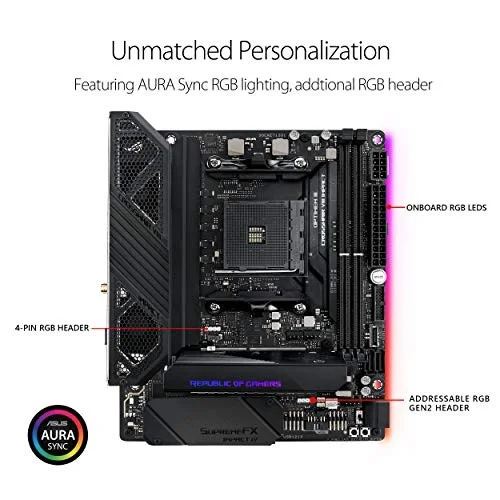

Unmatched Personalization: Asus Exclusive Aura Sync Rgb Lighting, Including Rgb Headers And Gen; 2 Addressable Headers
Diy Friendly Design: Pre Mounted I/O Shield, Asus Safe Slot And Impact Control Card Iv, Which Adds Bios Flashback, Clr Cmos, Q Code And Flexkey Functionality
Industry Leading Rog Audio: Supremefx Impact Iv Audio Card With Supremefx S1220 And Ess Sabre9023 Provide Enthusiast Grade Audio Performance

Manufacturer	ASUS
Model Number	ROG Crosshair VIII Impact Crosshair VIII Impact 90MB11Q0-M0EAY0 90MB11Q0-M0AAY0
Launch Date	September 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	Mini DTX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG Crosshair VIII Impact
SKU Code	ROG Crosshair VIII Impact
GTIN / EAN	192876372555
