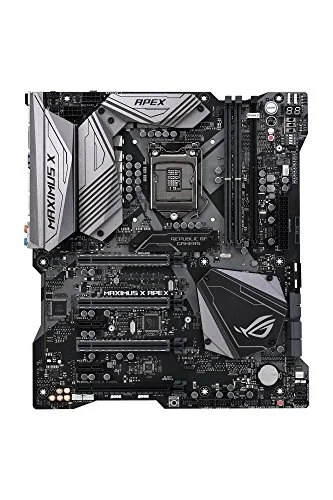

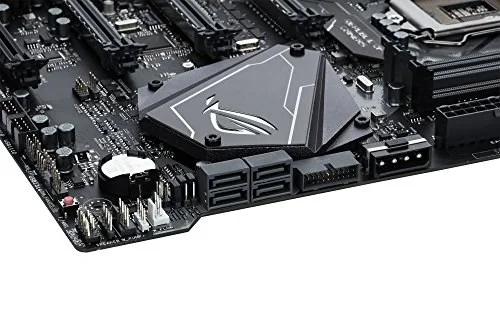

ASUS ROG Maximus X APEX

ASUS ROG Maximus X APEX LGA1151 EATX DDR4 32 GB Motherboard

Asus Motherboard $460.15

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ370

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Maximus X APEX is a EATX motherboard for LGA1151. It supports DDR4 memory up to 4500 MT/s (OC).

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with vertically mounted dual M.2, USB 3.1 Gen2, and Intel Optane Memory compatibility
Record-shattering Overclocking Design with a full suite of onboard features like dual BIOS chips, LN2 mode switch, water cooling headers, thermal sensor connectors and probelt measurement points
5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
Advanced Networking Connectivity featuring dual LAN connections (5 Gigabit/1Gigabit)
Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, four additional RGB headers and a 3D-print friendly design

Manufacturer	Asus
Model Number	MAXIMUS X APEX ROG MAXIMUS X APEX
Launch Date	August 2018
CPU Socket	LGA1151
Chipset Model	Intel Z370
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	32 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4333 / DDR4-4500 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	MAXIMUS X APEX
SKU Code	MAXIMUS X APEX
GTIN / EAN	889349850688
