Asus ROG Maximus XI Formula

Asus ROG Maximus XI Formula LGA1151 ATX DDR4 64 GB Motherboard

Asus Motherboard $501.66

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ROG Maximus XI Formula is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4400 MT/s (OC).

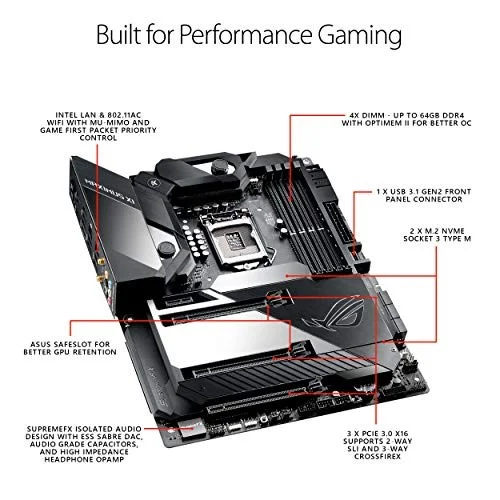

Designed for 9th,8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, 802.11ac Wi-Fi and ASUS Opti-MEM II for better DRAM overclocking stability

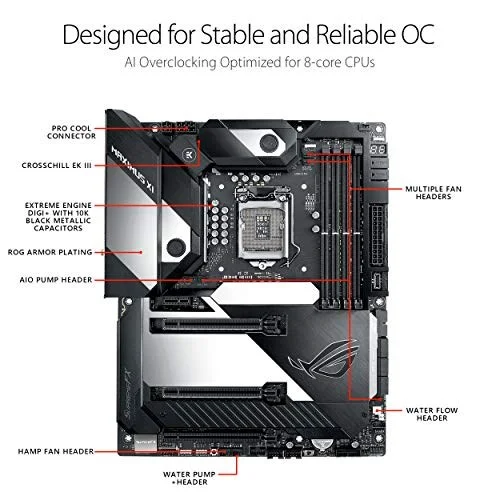

Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while Fan Xpert 4 delivers dynamic system cooling
Dedicated water cooling headers and built-in Cross Chill EK III water block allow monitoring of water temperature and flow without a standalone controller

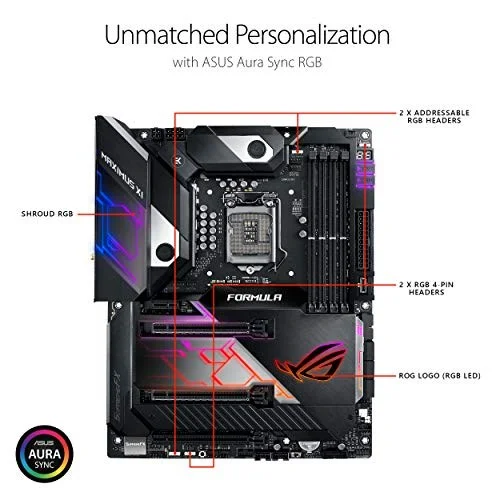

Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products

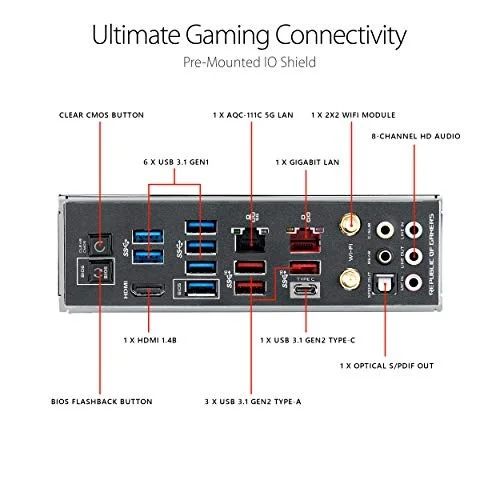

Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality

Manufacturer	Asus
Model Number	ROG Maximus XI Formula
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG Maximus XI Formula
SKU Code	ROG Maximus XI Formula
GTIN / EAN	192876131282
