ASUS ROG MAXIMUS XII APEX

ASUS ROG MAXIMUS XII APEX LGA1200 ATX DDR4 64 GB Motherboard

Asus Motherboard $219.7

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG MAXIMUS XII APEX is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).

Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

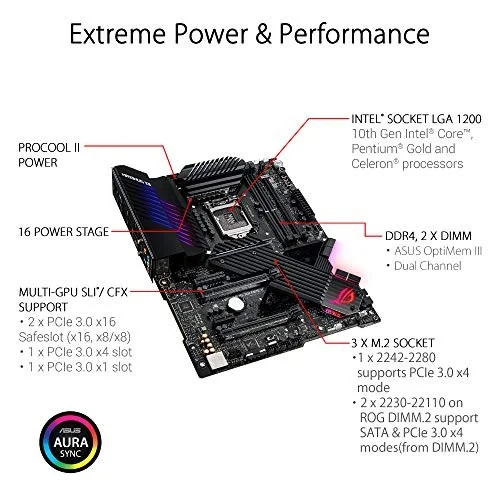

Robust Power Solution: Features 16 Teamed Power Stages, High-Quality Alloy Chokes And Durable Capacitors Provide Reliable Power To Push Your CPU Performance To The Extreme
Built To Break Limits: Record-Breaking Overclocking Performance, Overclocker’s Toolkit, Condensation Detection, Optimem III

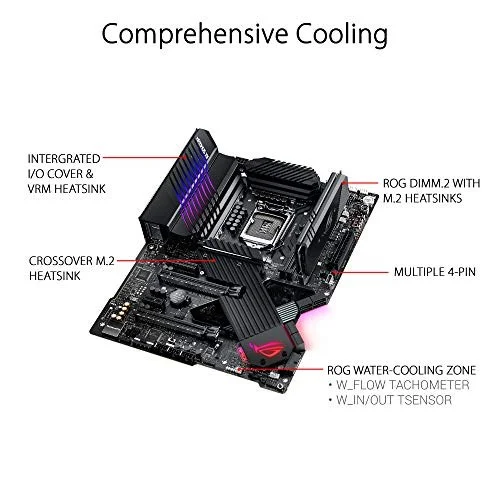

Superb Thermal Design: VRM Heatsinks And C-Shaped Heatpipe, Chipset And M. 2 Slots Heatsinks, Solid Steel Backplate, Multiple Fan Headers, Features AI Cooling To Balance Thermals And Acoustics By Reducing Fan Speeds And Maintaining A 5 Celsius Delta

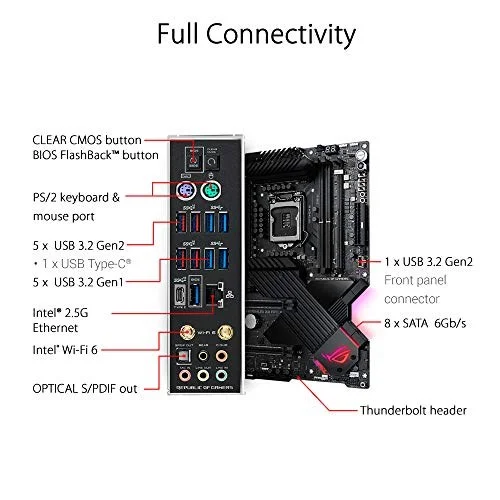

Fastest Gaming Connectivity: Intel Wifi 6 AX201 (802. 11 Ax), Intel 2. 5Gb Ethernet With Langaurd Technology, 3X M. 2 Slots, Dimm. 2, USB 3. 2 Gen 2X2 Front Panel Connector

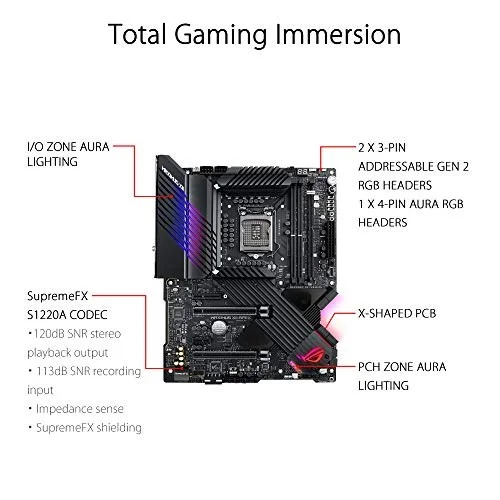

Unmatched Personalization: X-Shaped PCB For Customize Unique Build, ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen 2 Addressable Headers.
Industry-Leading Gaming Audio: High Fidelity Audio With The Supremefx S1220A Codec, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action

Manufacturer	ASUS
Model Number	ROG MAXIMUS XII APEX 90MB13D0-M0EAY0
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	3
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG MAXIMUS XII APEX
SKU Code	ROG MAXIMUS XII APEX
GTIN / EAN	192876669204
