Asus ROG Maximus XIII Extreme Glacial

Asus ROG Maximus XIII Extreme Glacial LGA1200 EATX DDR4 128 GB Motherboard

Asus Motherboard $830.21

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200
ChipsetZ590
Form FactorEATX
MemoryDDR4
Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller Shipping Price
-
N/A
-
N/A
-
N/A
Free

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The Asus ROG Maximus XIII Extreme Glacial is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).

  • Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 11Th Gen Intel Core Processors

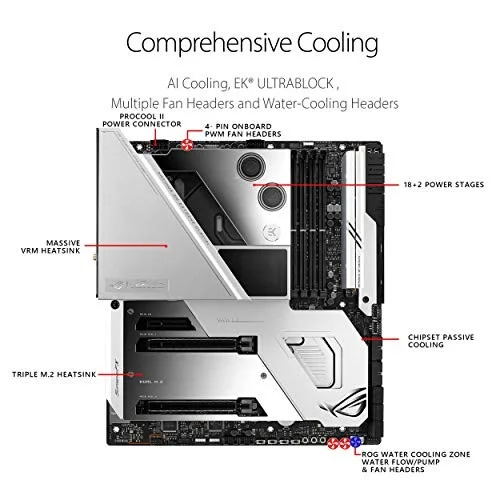

  • Optimized Thermal Design: Integrated EK Water Block That Cools VRM, CPU And PCH; High-Conductivity Thermal Pads, Five M.2 Heatsinks With Embedded Backplates And ROG Water-Cooling Zone

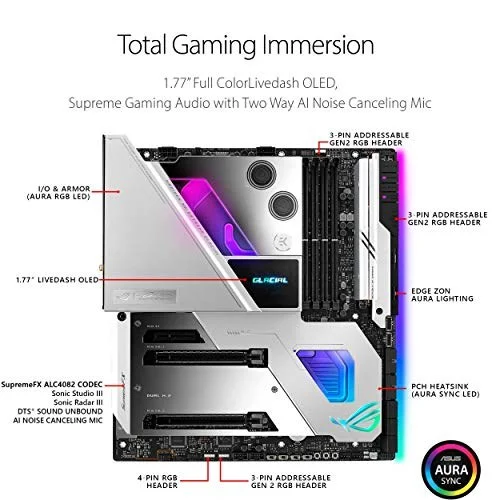

  • AI Motherboard : AI Overclocking, AI Cooling, AI Networking And AI Noise Cancelation; Unmatched Personalization: 2” Livedash Color OLED, ASUS-Exclusive Aura Sync RGB Lighting, Including One RGB Header And Three Addressable Gen 2 RGB Headers; DIY-Friendly Design: Pre-Mounted I/O Shield, V_Latch Switch, BIOS Flashback, Q-Code, Flexkey, Q-Connector, Safeslot And Graphics Card Holder

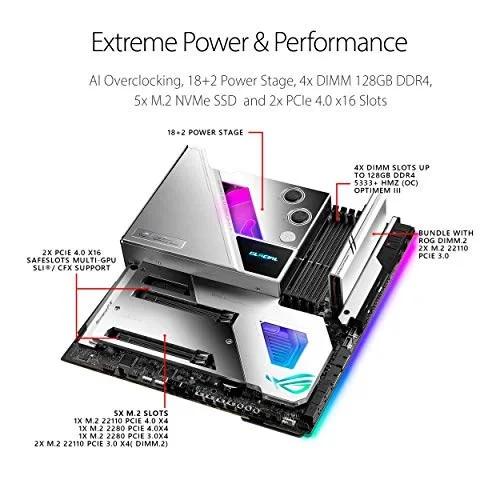

  • Extreme Power Solution: 18+2 Teamed Power Stages - Each Rated At 100 Amps, Procool II Power Connectors, Microfine Alloy Chokes And 10K Japanese-Made Black Metallic Capacitors; Fattest Gaming Connectivity: Pcie 4.0, Five M.2 Slots, USB 3.2 Gen 2X2 Front-Panel Connector, Dual Thunderbolt 4 USB-C ;Industry-Leading Gaming Audio & AI Noise Cancelation: High Fidelity Audio With The Supremefx ALC4082 CODECESS, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action.Communicate Clearly With ASUS AI Noise Cancelation Technology

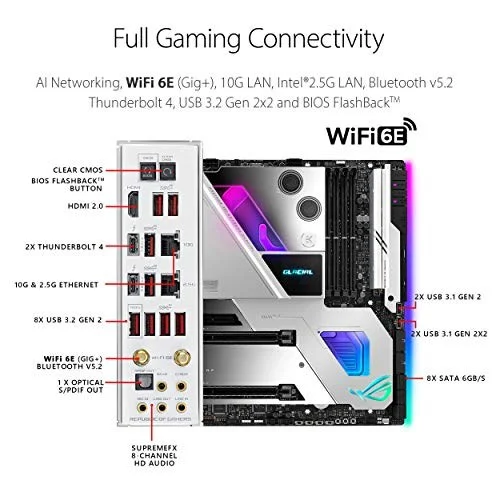

  • Superb Thermal Design: Enlarged VRM Heatsinks Plus Integrated Aluminum I/O Cover, High-Conductivity Thermal Pad, Five M.2 Heatsinks With Embedded Backplates And ROG Water-Cooling Zone Future Proof Gaming Networking: Intel Wifi 6E AX210 Pair With ROG Rapture GT-AXE11000 To Enjoy World’S First 6Hgz Wireless Transfer Speed, Dual Ethernet With Marvell Aqtion 10Gb And Intel 2.5Gb Ethernet;

Specifications

Manufacturer ASUS
Model Number ROG MAXIMUS XIII EXTREME GLACIAL 90MB1730-M0AAY0
Launch Date March 2021
CPU Socket LGA1200
Chipset Model Intel Z590
Board Size / Form Factor EATX
Supported Memory Type DDR4
DIMM Slots 4
Maximum RAM Capacity 128 GB
Valid DDR4 Speeds DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-5000 (OC)
ECC Memory Support No
Expansion Slots (PCIe) 2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty) 2
PCIe x4 (Qty) 1
PCIe x1 (Qty) 0
M.2 Slot Count 5 × M.2
M.2 Device Compatibility 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports 6 × SATA 6Gbps
SATA Express Ports 0
Wired Networking (LAN) N/A
Onboard Wi-Fi Yes
Wi-Fi Standard 6 (802.11ax)
Rear-Panel USB USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers 0
Internal USB 3.2 Gen 2 Headers 1
Internal USB 3.2 Gen 1 Headers 2
Internal USB 2.0 Headers 2
NVIDIA SLI Yes
AMD CrossFire No
RAID Capability Yes
Back-Connect Layout No
Manufacturer Part Number (MPN) ROG MAXIMUS XIII EXTREME GLACIAL
SKU Code ROG MAXIMUS XIII EXTREME GLACIAL
GTIN / EAN 195553093910
