ASUS ROG MAXIMUS Z790 APEX ENCORE

ASUS ROG MAXIMUS Z790 APEX ENCORE LGA1700 ATX DDR5 96 GB Motherboard

Asus Motherboard $649.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

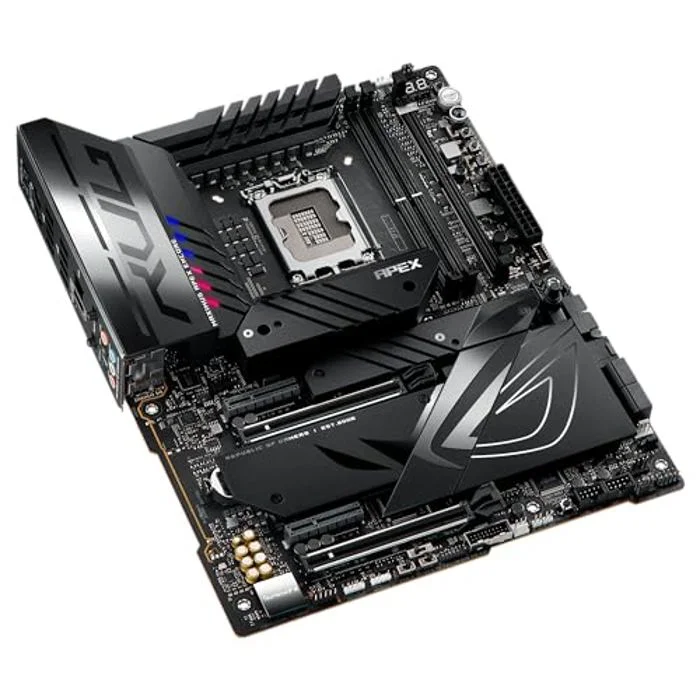

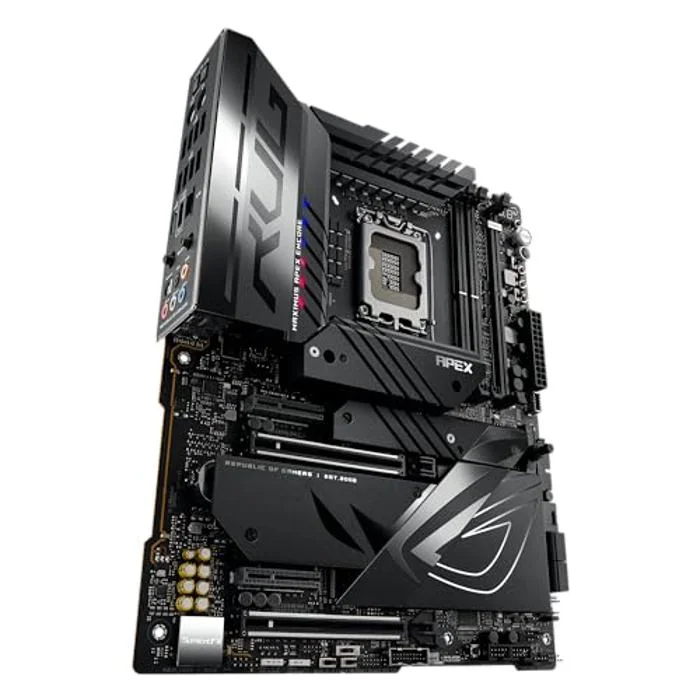

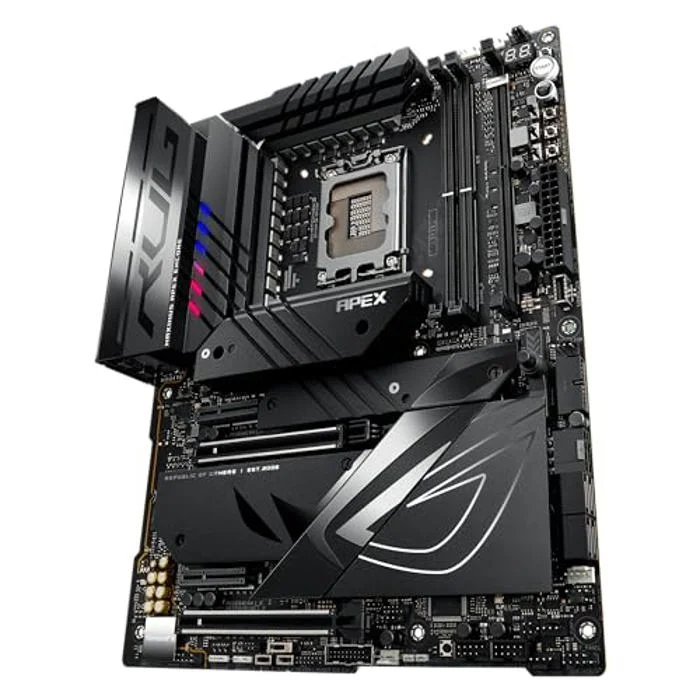

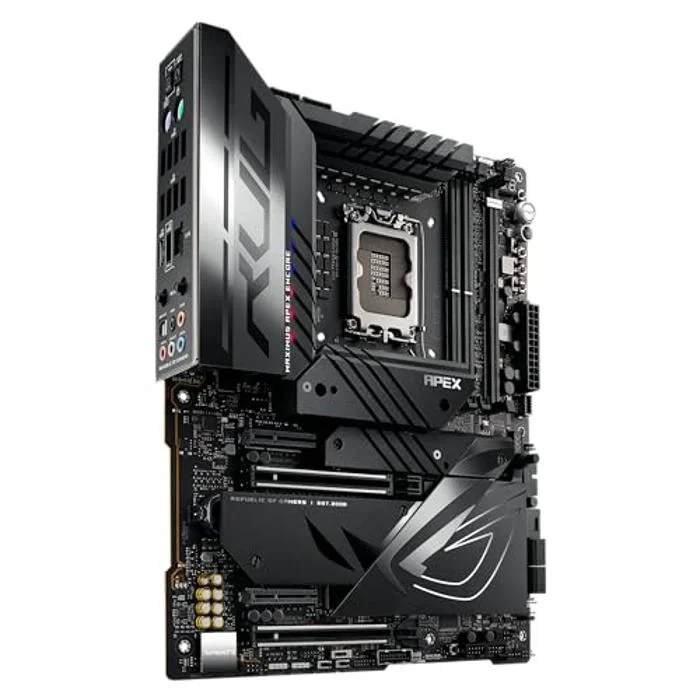

The ASUS ROG MAXIMUS Z790 APEX ENCORE is a ATX motherboard for LGA1700. It supports DDR5 memory up to 8400 MT/s (OC).

Intel LGA 1700 Socket: Ready for Intel Core 14th & 13th Gen processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Upscaled Power Solution: 24+0+2 power stages with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heat-pipe
Latest M.2 Support: Onboard PCIe 5.0 M.2 slot, two onboard PCIe 4.0 M.2 slots, and two PCIe 4.0 M.2 slots on an ROG DIMM.2 card, all with substantial cooling solutions
Abundant Connectivity: USB 20Gbps Type-C port, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, five additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots

Manufacturer	ASUS
Model Number	ROG MAXIMUS Z790 APEX ENCORE 90MB1FX0-M0AAY0 90MB1FX0-M0EAY0
Launch Date	October 2023
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	96 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	2
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG MAXIMUS Z790 APEX ENCORE
SKU Code	ROG MAXIMUS Z790 APEX ENCORE
GTIN / EAN	197105361119
