Asus ROG MAXIMUS Z790 EXTREME

Asus ROG MAXIMUS Z790 EXTREME LGA1700 EATX DDR5 192 GB Motherboard

Asus Motherboard $999.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorEATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

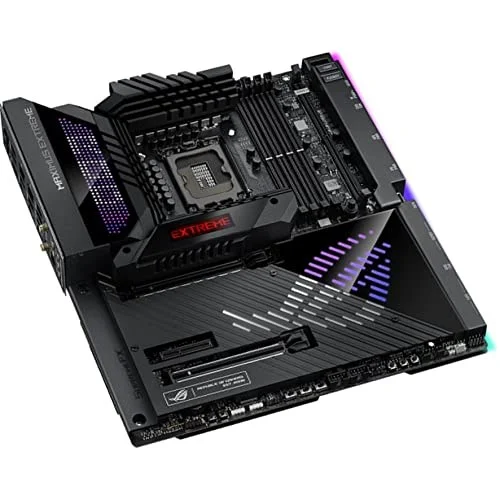

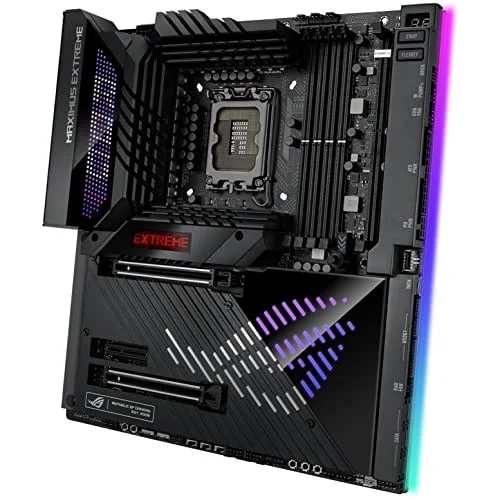

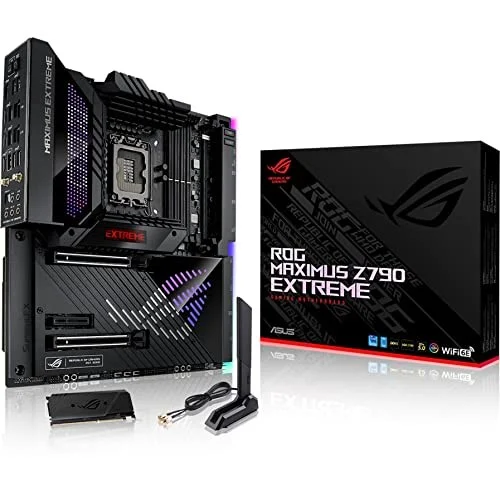

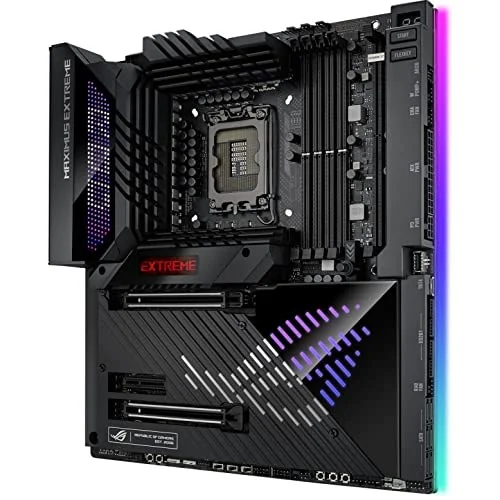

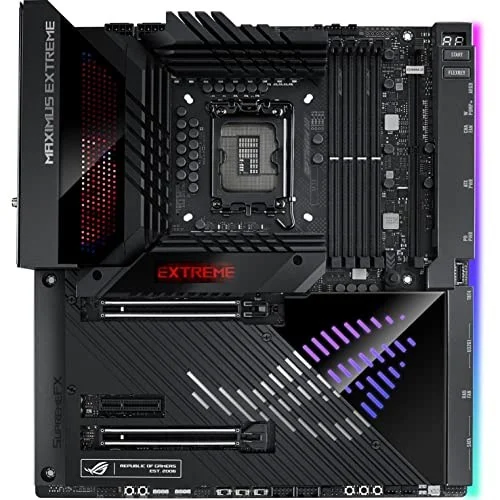

The Asus ROG MAXIMUS Z790 EXTREME is a EATX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).

ASUS ROG Maximus Z790 Extreme (WiFi 6E) LGA 1700(Intel12th&13th Gen) EATX gaming motherboard (PCIe 5.0, DDR5,24+1 105A power stages,5x M.2,1xPCIe 5.0 M.2,10Gb&2.5Gb LAN,2xThunderbolt 4 onboard, AniMe Matrix LED,USB 3.2 Gen 2x2 front-panel) Memory Standard: DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC4082 PCI Express 5.0 x16: Intel 13th & 12th Gen Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** * Please check the PCIe bifurcation table on the ASUS support site. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.

Manufacturer	Asus
Model Number	ROG MAXIMUS Z790 EXTREME 90MB1CB0-M0AAY0
Launch Date	October 2022
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	EATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	2
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2280 - M Key, 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG MAXIMUS Z790 EXTREME
SKU Code	ROG MAXIMUS Z790 EXTREME
GTIN / EAN	195553938259
