ASUS ROG Maximus Z890 Hero

ASUS ROG Maximus Z890 Hero LGA1851 ATX DDR5 192 GB Motherboard

Asus Motherboard $579.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1851

ChipsetZ890

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

Seller	Shipping	Price
	-	N/A Visit Store
	-	N/A Visit Store
	-	N/A
	Free	N/A Visit Store

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

Overview

The ASUS ROG Maximus Z890 Hero is a ATX motherboard for LGA1851. It supports DDR5 memory up to 8800 MT/s (OC).

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)
Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance

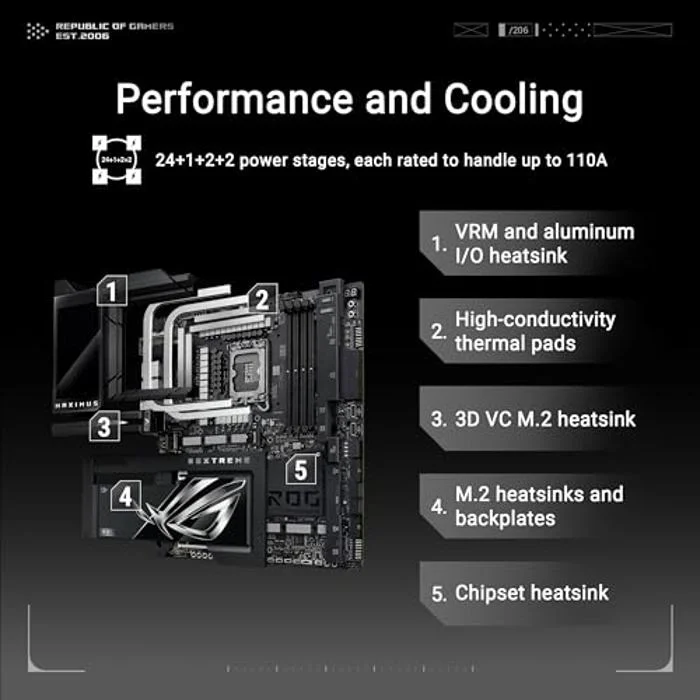

Robust Power Solution: 22(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 Power Boosts, all with substantial cooling solutions
Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1
High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
DIY Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

Specifications

Manufacturer	ASUS
Model Number	ROG MAXIMUS Z890 HERO 90MB1ID0-M0AAY0
Launch Date	October 2024
CPU Socket	LGA1851
Chipset Model	Intel Z890
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8600 / DDR5-8800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	6 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG MAXIMUS Z890 HERO
SKU Code	ROG MAXIMUS Z890 HERO
GTIN / EAN	197105747227
