Asus ROG RAMPAGE VI APEX

Asus ROG RAMPAGE VI APEX LGA2066 EATX DDR4 64 GB Motherboard

Asus Motherboard $489.1

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

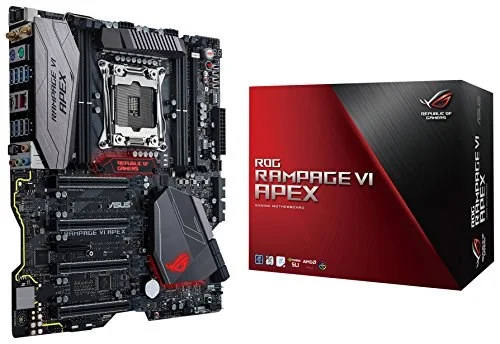

The Asus ROG RAMPAGE VI APEX is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4500 MT/s (OC).

Designed for 7th generation Intel Core X-Series processors

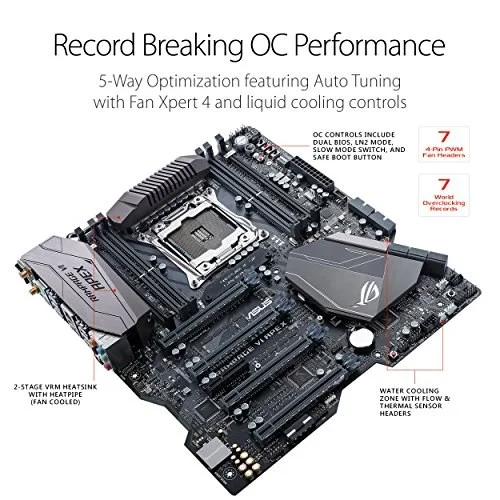

Record-shattering Overclocking Design with a full suite of onboard features
5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
Four Patent-pending Safe Slots feature an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs
Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, customizable nameplate, two additional RGB headers and a 3D-printing friendly design

Manufacturer	Asus
Model Number	ROG RAMPAGE VI APEX
Launch Date	August 2017
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4500 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	4 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG RAMPAGE VI APEX
SKU Code	ROG RAMPAGE VI APEX
GTIN / EAN	889349732595
