ASUS ROG Rampage VI Extreme Omega

ASUS ROG Rampage VI Extreme Omega LGA2066 EATX DDR4 128 GB Motherboard

Asus Motherboard $571.85

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA2066

ChipsetX299

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

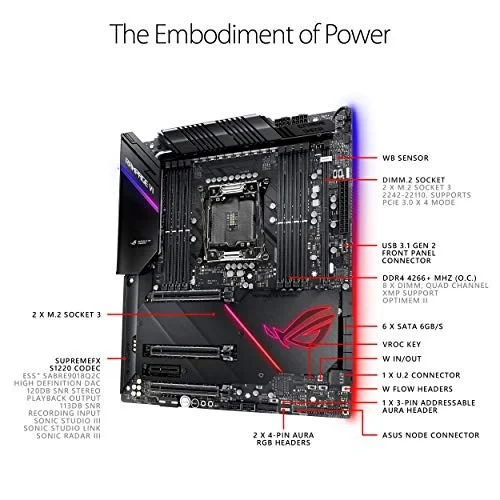

The ASUS ROG Rampage VI Extreme Omega is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).

Designed for 9th generation Intel Core X-Series processors to maximize connectivity and speed with up to four M.2 drives, USB 3.1 Gen 2, Intel VROC and Intel Optane Memory compatibility
Built for high performance networking featuring onboard Aquantia 10G LAN, 802.11AC Wi-Fi with MU-MIMO support and Intel Gigabit LAN with ASUS LANGuard and GameFirst V technologies
5-Way Optimization featuring Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles for maximum OC performance while thermal sensors and watercooling headers provide dynamic system cooling

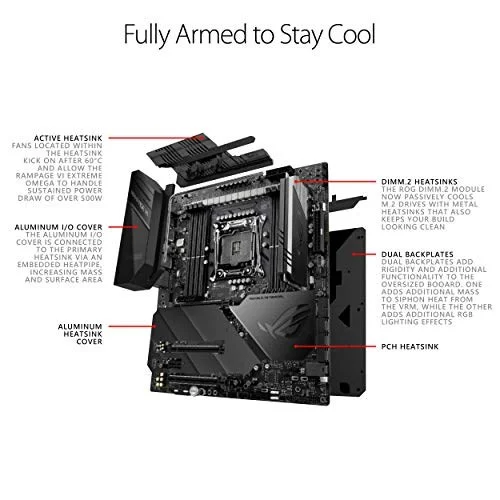

Active heatsink with integrated VRM fan, pcie-zone M.2 aluminum heatsink and dual backplates ensure comprehensive system cooling
Unmatched Personalization with Aura Sync RGB lighting including two RGB headers, one addressable header and livedash OLED.Supports up to 32-Bit/192kHz playback

Manufacturer	ASUS
Model Number	ROG RAMPAGE VI EXTREME OMEGA
Launch Date	January 2019
CPU Socket	LGA2066
Chipset Model	Intel X299
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	3
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG RAMPAGE VI EXTREME OMEGA
SKU Code	ROG RAMPAGE VI EXTREME OMEGA
GTIN / EAN	192876225653
