ASUS ROG STRIX B365-F GAMING

ASUS ROG STRIX B365-F GAMING LGA1151 ATX DDR4 64 GB Motherboard

Asus Motherboard $168.48

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetB365

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

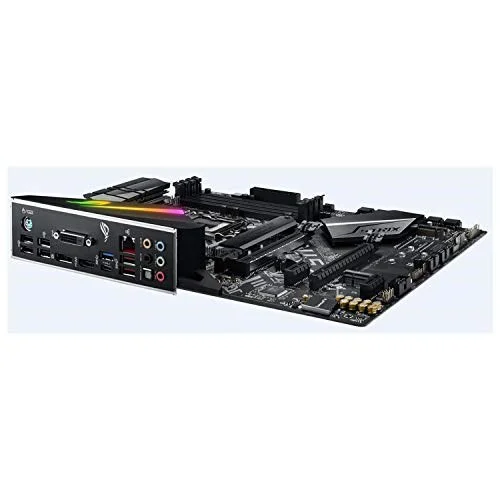

The ASUS ROG STRIX B365-F GAMING is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).

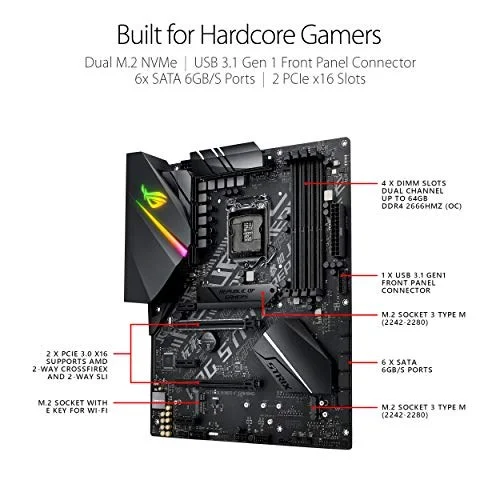

1. LGA1151 Socket: Ready For 9Th/8Th Gen Intel Core Desktop Processors.
1. Dual Channel Non-ECC Un-Buffered DDR4, 4 X DIMM Slots Support Up To 64GB DDR4 Memory

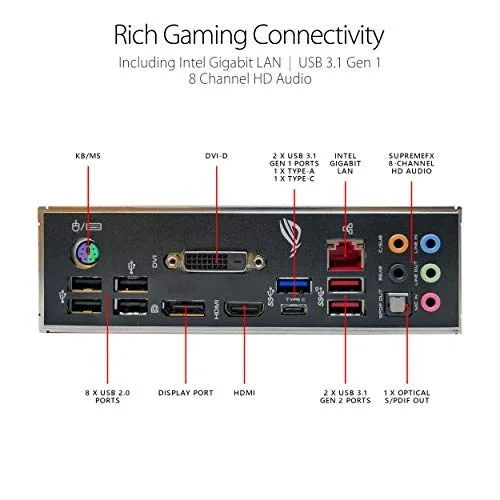

1. Gaming Connectivity: Dual Onboard M. 2 With Intel Optane Memory Ready, USB 3. 1 Gen 2 Type-A Connectors, Displayport, HDMI And DVI
1. Gaming Networking: Intel Gigabit Ethernet, Languard And Gamefirst For Smoother, Safer And Lag-Free Online Play.

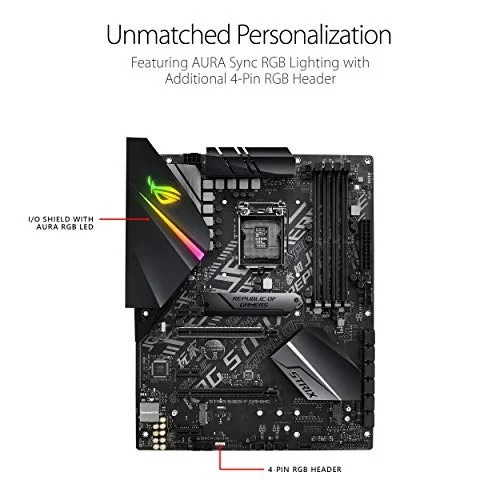

1. Unmatched Personalization: One RGB Header With Asus Exclusive AURA Sync RGB Lighting And A 3D-Printing Friendly Mount
1. Comprehensive Cooling: Fan Xpert 4 With GPU Temperature Sensing Allows For Dynamic Fan Calibration And Optimized System Cooling While Gaming
1. Gaming Audio: Supremefx S1220A Teamed With Sonic Studio III Creates Immersive Aural Landscapes.

Manufacturer	ASUS
Model Number	ROG STRIX B365-F GAMING
Launch Date	December 2019
CPU Socket	LGA1151
Chipset Model	Intel B365
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX B365-F GAMING
SKU Code	ROG STRIX B365-F GAMING
GTIN / EAN	192876340455
