ASUS ROG STRIX B450-F Gaming II

ASUS ROG STRIX B450-F Gaming II AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $139.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG STRIX B450-F Gaming II is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

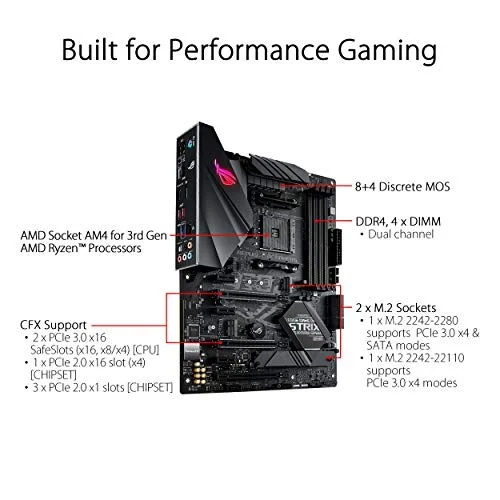

AMD AM4 Socket: Compatible To 3Rd/2Nd/1St Gen AMD Ryzen Cpus
Robust Power Design: 8+2 Drmos Power Stages With High-Quality Alloy Chokes And Durable Capacitors Provide Reliable Power For The Last AMD High-Count-Core Cpus

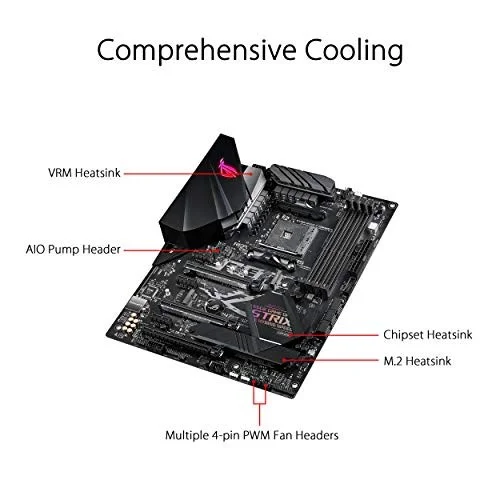

Optimized Thermal Solution: Extended VRM And PCH Heatsinks, M.2 Heatsinks, Multiple Hybrid Fan Headers And Fan Speed Management With Fan Xpert Utility

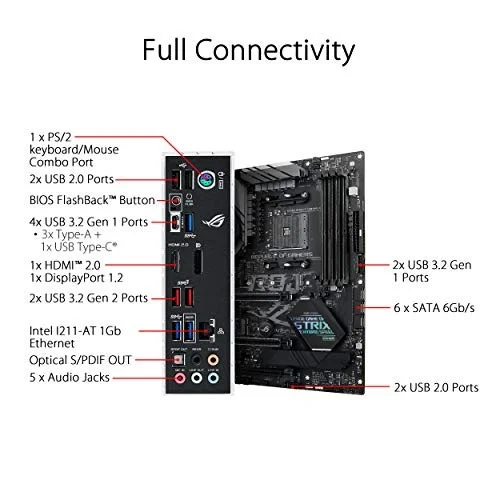

Best Gaming Connectivity: Supports HDMI 2.0B(4K@60HZ) And Displayport 1.2 Output, Featuring Dual M.2 Slots (Nvme SSD), 2X Pcie 3.0X16 Slot, USB 3.2 Gen 2 Type-A Port And USB 3.1 Gen 2 Type-A & Type-C Ports

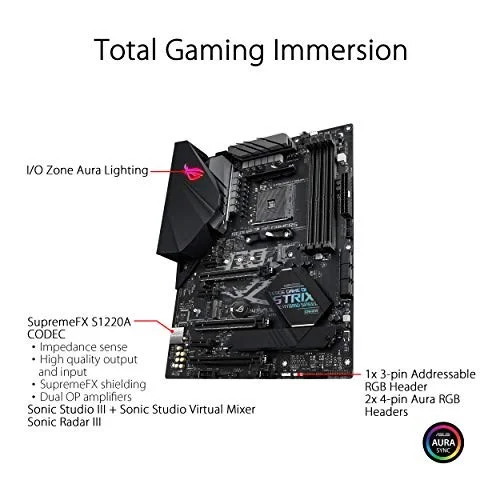

Industry-Leading Gaming Audio & AI Noise Canceling Microphone Technology: High Fidelity Audio From A Supremefx S1220A Codec With DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Action. Communicate Clearly With ASUS AI Noise Cancelling Mic Technology.

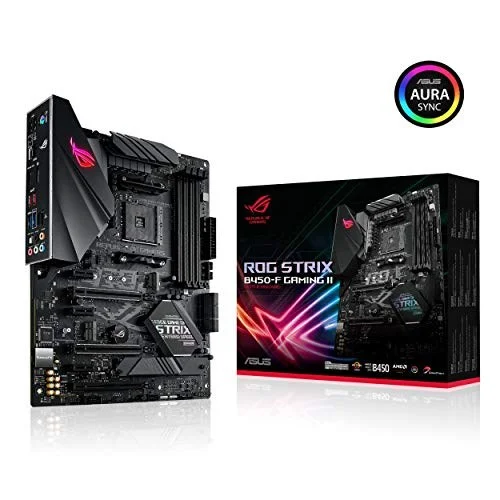

Unmatched Personalization: ASUS-Exclusive Aura Sync RGB Lighting With Armoury Crate Utility, Including 2Xrgb Headers And A Gen 2 Addressable RGB Header For Greater Customization
DIY Friendly: With BIOS Flashback And ASUS Exclusive UEFI BIOS, 256Mb BIOS Flash ROM And Pre-Mount I/O Shroud

Manufacturer	ASUS
Model Number	ROG STRIX B450-F Gaming II 90MB15V0-M0AAY0
Launch Date	October 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX B450-F Gaming II
SKU Code	ROG STRIX B450-F Gaming II
GTIN / EAN	192876924068
