ASUS ROG Strix B550-XE Gaming WiFi

ASUS ROG Strix B550-XE Gaming WiFi AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $169.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB550

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Strix B550-XE Gaming WiFi is a ATX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).

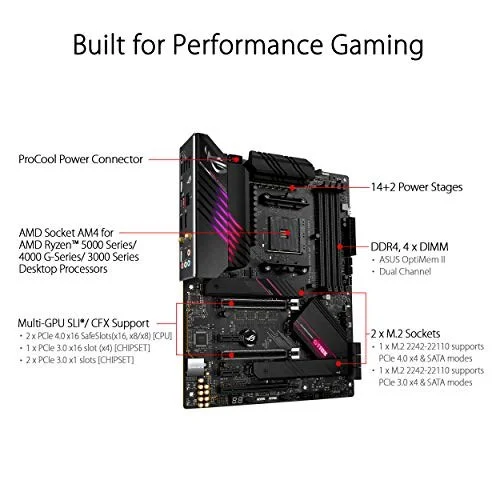

AMD AM4 Socket and PCIe 4.0: AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

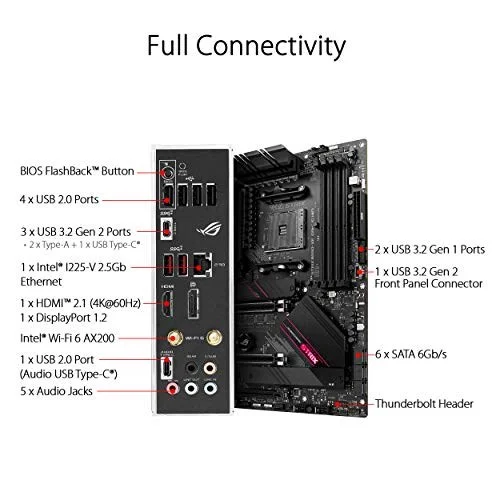

Best gaming connectivity: PCIe 4.0-ready, two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output
Robust power solution: 14+2 90A power stages with ProCool power connector, high-quality alloy chokes and durable capacitors

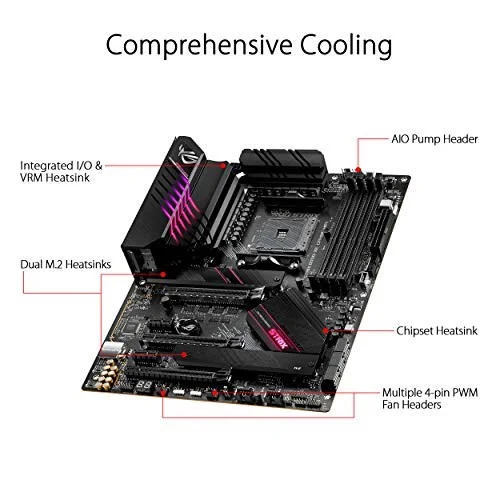

Comprehensive cooling: Actively cooled VRM heatsinks with L-shaped heatpipe and integrated aluminum I/O cover, plus dedicated M.2 heatsinks
Superfast networking: Onboard WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard

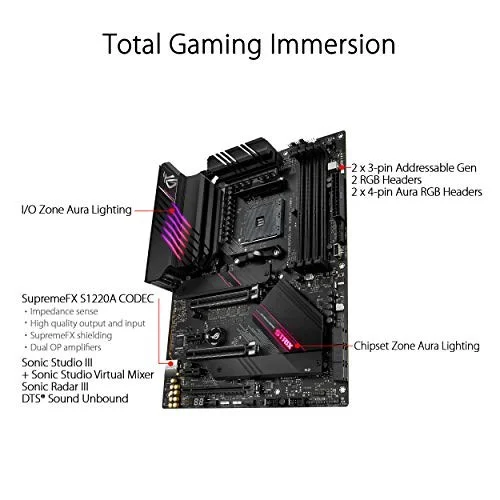

Industry-leading Gaming Audio: Audio USB Type-C, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III for immersive audio
Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and addressable Gen 2 RGB headers

Manufacturer	ASUS
Model Number	Strix B550-XE Gaming WiFi ROG STRIX B550-XE GAMING WIFI 90MB17B0-M0EAY0 90MB17B0-M0AAY0
Launch Date	November 2020
CPU Socket	AMD Socket AM4
Chipset Model	Intel B550
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-4866 / DDR4-5100 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Strix B550-XE Gaming WiFi
SKU Code	Strix B550-XE Gaming WiFi
GTIN / EAN	192876985564
