Asus ROG STRIX B650-A GAMING WIFI

Asus ROG STRIX B650-A GAMING WIFI AM5 ATX DDR5 192 GB Motherboard

Asus Motherboard $169.49

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetB650

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ROG STRIX B650-A GAMING WIFI is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

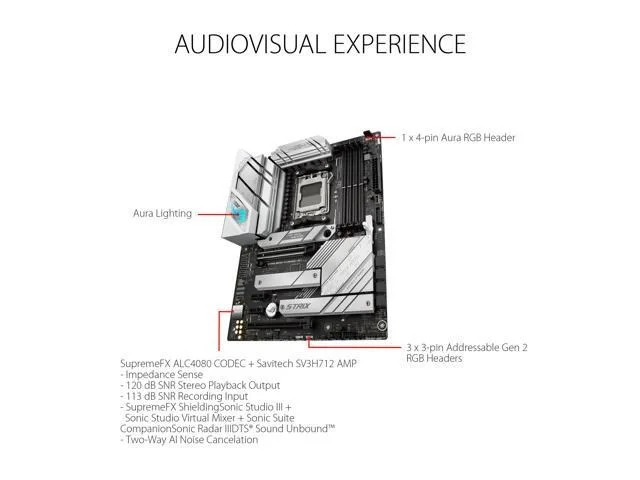

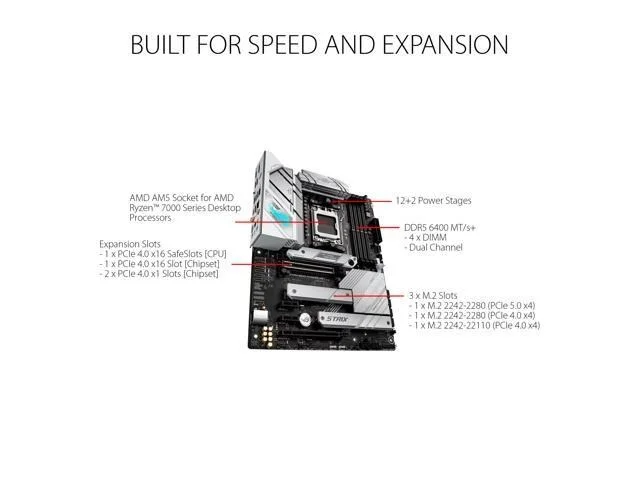

ASUS ROG STRIX B650-A GAMING WIFI 6E Socket AM5 (LGA 1718) Ryzen 7000 gaming motherboard(12 + 2 power stages, DDR5, three M.2 slots, PCIe 4.0, 2.5G LAN, WiFi 6E, USB 3.2 Gen 2x2 Type-C port, and Aura Sync RGB ) Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Audio Chipset: Realtek ALC4080 PCI Express x1: 2 x PCIe 4.0/3.0 x1 slots Audio Channels: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback

Manufacturer	Asus
Model Number	ROG STRIX B650-A GAMING WIFI 90MB1BP0-M0AAY0 90MB1BP0-MVAAY0
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel B650
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	2.5GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX B650-A GAMING WIFI
SKU Code	ROG STRIX B650-A GAMING WIFI
GTIN / EAN	195553917766
