Asus ROG STRIX B660-F GAMING WIFI

Asus ROG STRIX B660-F GAMING WIFI LGA1700 ATX DDR5 192 GB Motherboard

Asus Motherboard $179.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ROG STRIX B660-F GAMING WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).

ROG Strix B660-F Gaming WiFi offers high-grade power delivery and optimized cooling to unleash the latest 12th Gen Intel Coreprocessors. Onboard PCIe 5.0 and a spread of PCIe 4.0 M.2 slots provide lightning-fast data transfers for an endless variety of scenarios, while DDR5 gets propelled beyond all limits by ASUS AEMP. On top of all that, DIY-friendly innovations and an arsenal of system utilities help simplify the PC building process and get to you up and running smoothly.

Manufacturer	Asus
Model Number	ROG STRIX B660-F GAMING WIFI 90MB18R0-M0EAY0
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

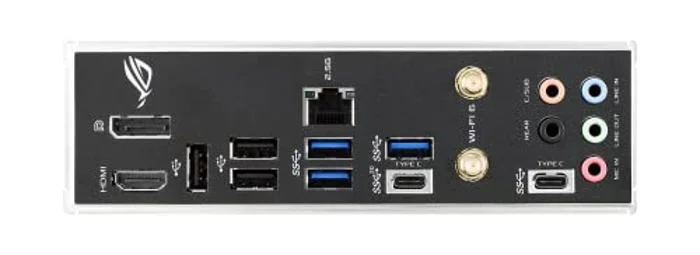

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX B660-F GAMING WIFI
SKU Code	ROG STRIX B660-F GAMING WIFI
GTIN / EAN	4711081552185
