Asus ROG STRIX B660-I GAMING WIFI

Asus ROG STRIX B660-I GAMING WIFI LGA1700 Mini-ITX DDR5 96 GB Motherboard

Asus Motherboard $219.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetB660

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

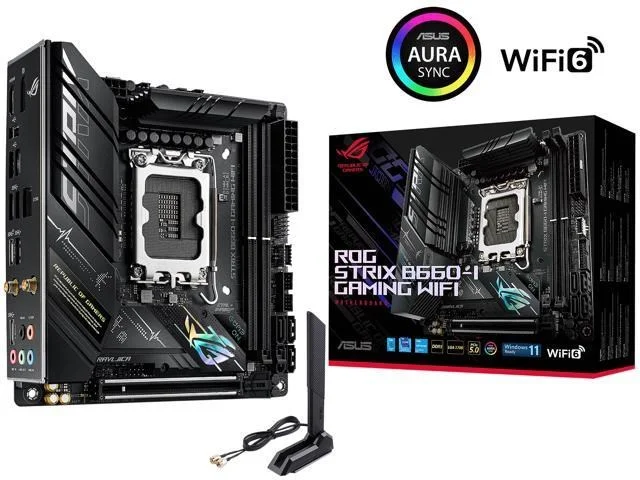

The Asus ROG STRIX B660-I GAMING WIFI is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6200 MT/s (OC).

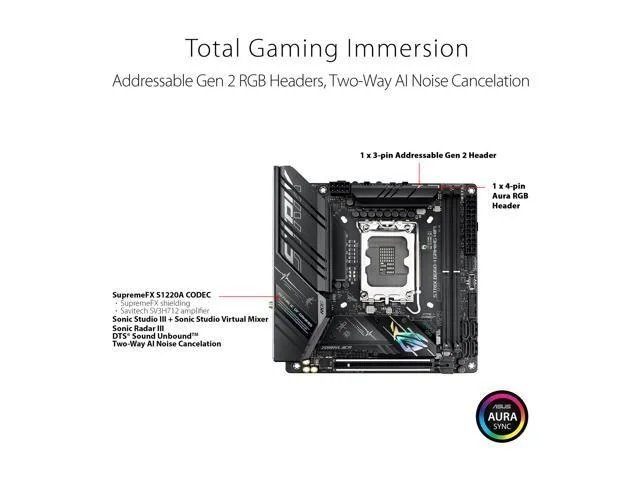

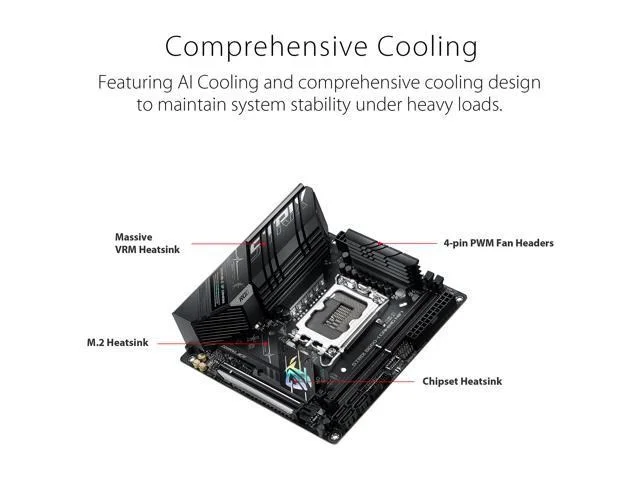

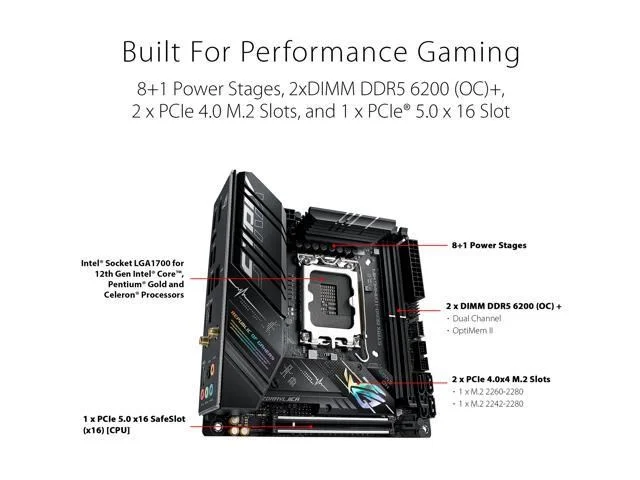

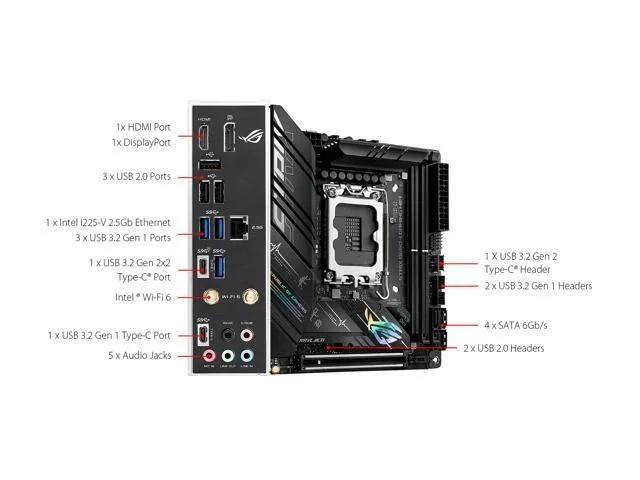

ASUS ROG STRIX B660-I GAMING WIFI LGA 1700 (Intel 12th Gen) Mini-ITX Gaming Motherboard (PCIe 5.0, 8+1 power stages, DDR5, WiFi 6, 2.5 Gb LAN, 2xM.2 PCIe 4.0 NVMe SSD support, USB 3.2 Gen 2x2 Type-C) Memory Standard: DDR5 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800* * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. Number of Memory Slots: 2×288pin (DDR5) Audio Chipset: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps CPU Type: Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors

Manufacturer	Asus
Model Number	ROG STRIX B660-I GAMING WIFI 90MB19C0-M0AAY0
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel B660
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	96 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX B660-I GAMING WIFI
SKU Code	ROG STRIX B660-I GAMING WIFI
GTIN / EAN	195553514965
