Asus ROG STRIX X370-F GAMING

Asus ROG STRIX X370-F GAMING AM4 ATX DDR4 64 GB Motherboard

Asus Motherboard $299.98

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX370

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ROG STRIX X370-F GAMING is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

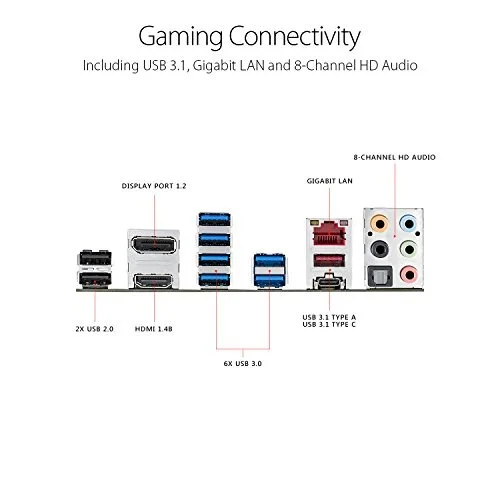

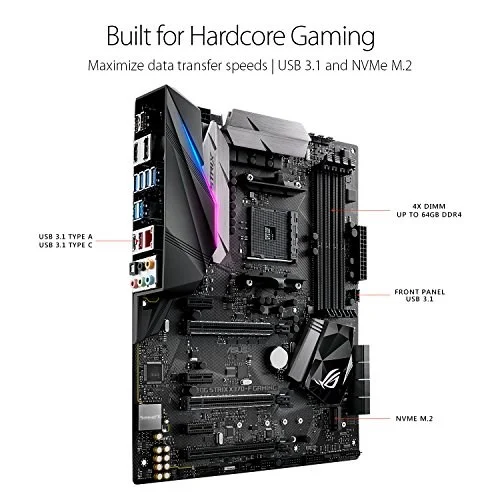

Powered by AMD RyzenTM AM4, 7th generation AthlonTM and HD 2000 series processors to maximize connectivity and speed with NVMe M.2, front-panel USB 3.1 and Gigabit LAN

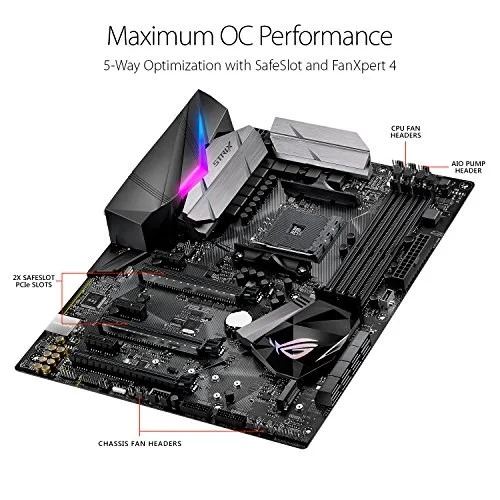

5-Way Optimization with Auto-Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

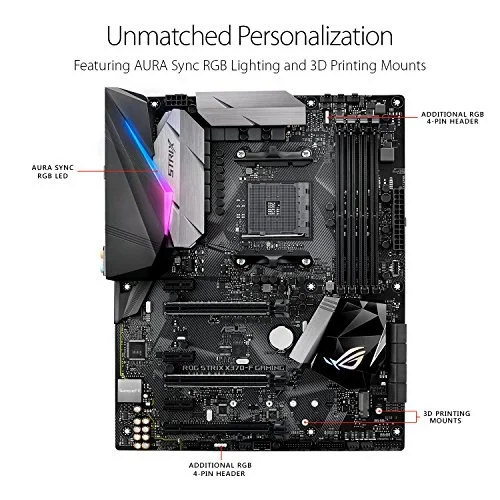

Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers and a 3D-printing friendly design
Dual Patent-pending SafeSlot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design
Gaming durability: ASUS SafeSlot and premium components for maximum durability

Manufacturer	Asus
Model Number	STRIX X370-F GAMING ROG STRIX X370-F GAMING 90MB0UI0-M0EAY0
Launch Date	April 2018
CPU Socket	AMD Socket AM4
Chipset Model	Intel X370
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	1
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	STRIX X370-F GAMING
SKU Code	STRIX X370-F GAMING
GTIN / EAN	889349697108
