ASUS ROG Strix X570-I Gaming

ASUS ROG Strix X570-I Gaming AM4 Mini-ITX DDR4 64 GB Motherboard

Asus Motherboard $259

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorMini-ITX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Strix X570-I Gaming is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).

Amd AM4 Socket: Ready For 2Nd, And 3Rd Gen AMD Ryzen Processors, Support Dual M. 2 Drives, USB 3. 2 Gen2, HDMI 2. 0, Displayport 1. 4 And AMD Store Mi To Maximize Connectivity And Speed.

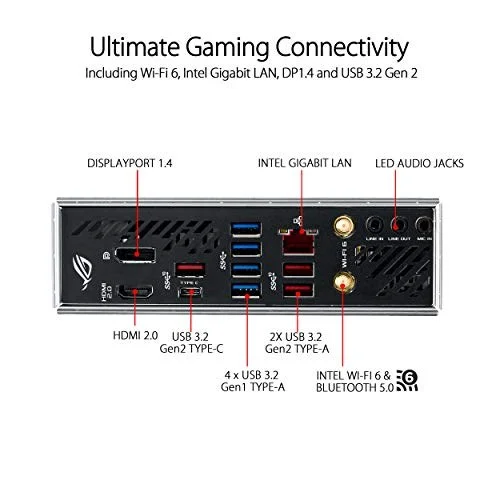

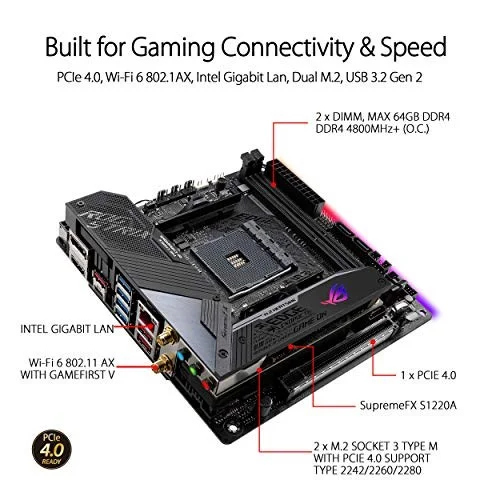

Next-Gen Gaming Connectivity: Features Pcie 4. 0, HDMI 2. 0, Displayport 1. 4, Dual M. 2, USB 3. 2 Type-A And Type-C Connectors.
Fastest Gaming Networking: Intel Gigabit Ethernet With Asus Languard, Wi-Fi 6 (802. 11Ax) With MU-MIMO Support, And Gateway Teaming Via Gamefirst V.

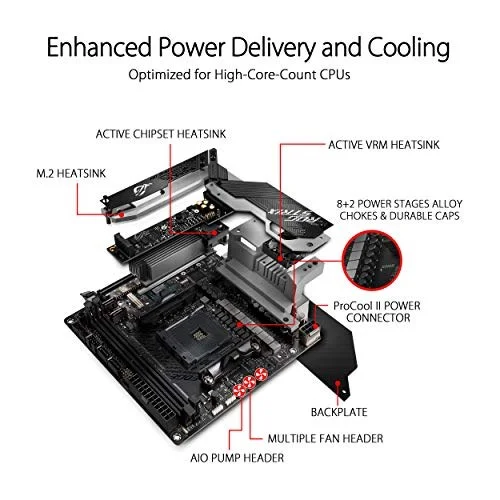

Optimal Power Solution: 8+2 Power Stages With A Procool II Power Connector, Alloy Chokes And Durable Capacitors To Support Multi-Core Processors.
Comprehensive Cooling Design: Features An Actively-Cooled VRM, Chipset Combo Heatsink And Heat Pipe To Absorb And Rapidly Dissipate Heat, Meanwhile Paired With AIO Pump Header And Multiple Chassis-Fan Header.

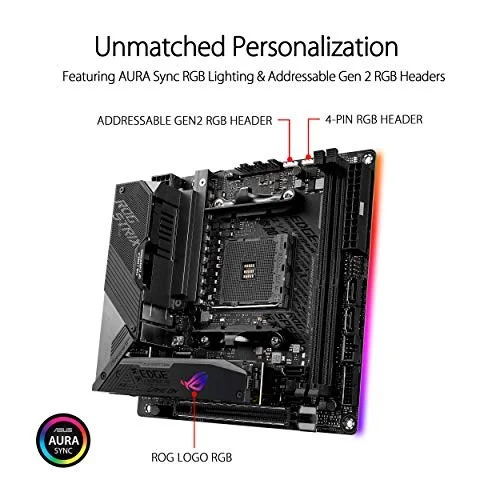

Unmatched Personalization: ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen. 2 Addressable RGB Headers.
Industry-Leading ROG Audio: High-Fidelity Audio With Supreme S1220A, DTS Sound Unbound And Sonic Studio III To Draw You Deeper Into The Action.
5-Way Optimization: Automated System-Wide Tuning, Providing Overclocking And Cooling Profiles Tailor Made For Your Rig.

Manufacturer	ASUS
Model Number	ROG Strix X570-I Gaming 90MB1140-M0EAY0 90MB1140-M0AAY0
Launch Date	September 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR4
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3800 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	1
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG Strix X570-I Gaming
SKU Code	ROG Strix X570-I Gaming
GTIN / EAN	192876487594
