Asus ROG STRIX X670E-I GAMING WIFI

Asus ROG STRIX X670E-I GAMING WIFI AM5 Mini-ITX DDR5 64 GB Motherboard

Asus Motherboard $400

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM5

ChipsetX670E

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ROG STRIX X670E-I GAMING WIFI is a Mini-ITX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

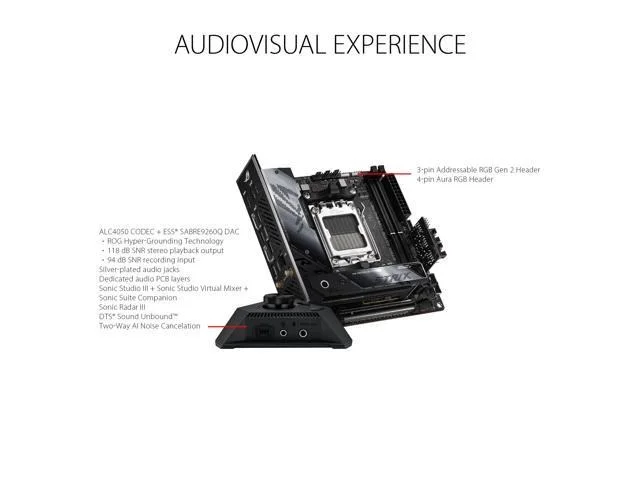

ASUS ROG STRIX X670E-I GAMING WIFI 6E Socket AM5 (LGA 1718) Ryzen 7000 mini-ITX Gaming Motherboard (PCIe 5.0, DDR5, 10 + 2 power stages, ROG Strix Hive, EZ Mode PBO Button, Two M.2 Slots, Two USB4 Type-C Ports) Number of Memory Slots: 2x288pin (DDR5) Memory Standard: Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. Audio Chipset: Realtek ALC4050 Audio Channels: ROG High Definition Audio CODEC ALC4050 - Supports: Jack-detection - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - ROG Hyper-Grounding Technology - ESS SABRE9260Q DAC - Silver-plated audio jacks - Optical S/PDIF out port & USB Type-C port with indepent power solution - Dedicated audio PCB layers

Manufacturer	Asus
Model Number	ROG STRIX X670E-I GAMING WIFI 90MB1B70-M0AAY0
Launch Date	N/A
CPU Socket	AM5
Chipset Model	Intel X670E
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX X670E-I GAMING WIFI
SKU Code	ROG STRIX X670E-I GAMING WIFI
GTIN / EAN	195553905572
