Asus ROG Strix Z390-E Gaming

Asus ROG Strix Z390-E Gaming LGA1151 ATX DDR4 64 GB Motherboard

Asus Motherboard $243.1

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1151

ChipsetZ390

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

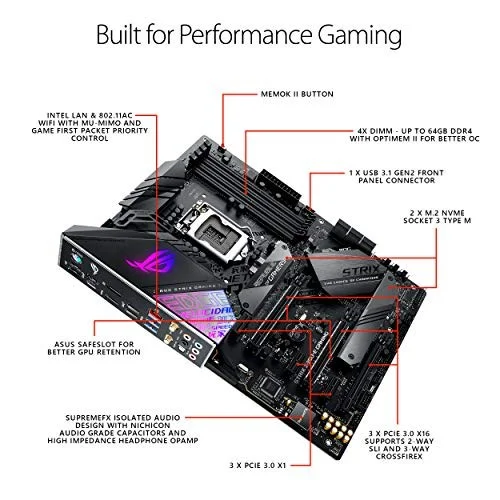

The Asus ROG Strix Z390-E Gaming is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).

Designed for 9th 8th Generation Intel Core processors maximize connectivity and speed with Dual M.2, USB 3.1 Gen 2, onboard 802.11AC Wi-Fi and ASUS optimum II for better DRAM overclocking stability

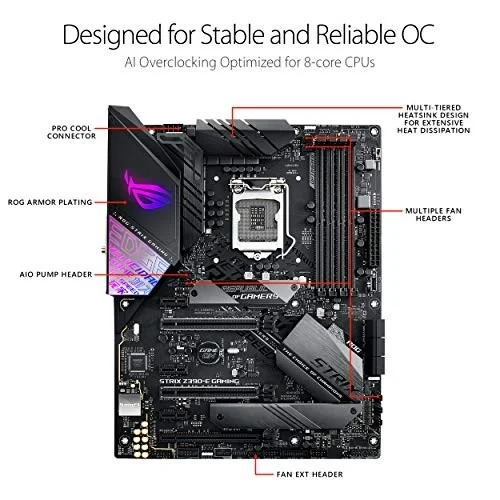

Revamped 5-way Optimization overclocks Intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling
Gamer’s Guardian ensures component longevity with safe Slot, ESD guards and DRAM overcurrent protection
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality

Manufacturer	Asus
Model Number	ROG Strix Z390-E Gaming
Launch Date	October 2018
CPU Socket	LGA1151
Chipset Model	Intel Z390
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG Strix Z390-E Gaming
SKU Code	ROG Strix Z390-E Gaming
GTIN / EAN	192876122839
