ASUS ROG STRIX Z490-G GAMING (WI-FI)

ASUS ROG STRIX Z490-G GAMING (WI-FI) LGA1200 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $219.51

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1200

ChipsetZ490

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG STRIX Z490-G GAMING (WI-FI) is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 4600 MT/s (OC).

Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

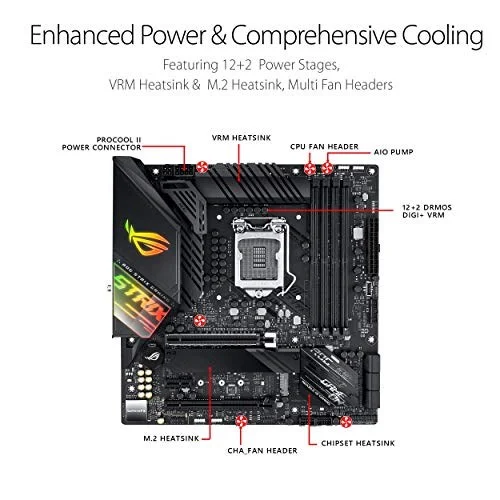

Robust Power Solution: 12+2 Power Stages With Procool II Power Connector, High-Quality Alloy Chokes And Durable Capacitors To Provide Reliable Power When Pushing CPU Performance To The Limit
Optimized Thermal Design: VRM Heatsink, PCH Fanless Heatsink, M. 2 Heatsink, Hybrid Fan Headers And Fan Xpert 4 Utility
High-Performance Gaming Networking: On-Board Intel 2. 5 Gb Ethernet With ASUS Languard

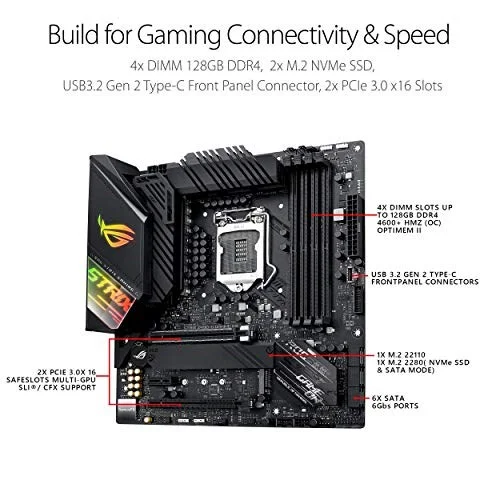

Best Gaming Connectivity: Supports HDMI 1. 4 And Displayport 1. 4 Output, And Featuring Dual M. 2, Front Panel USB 3. 2 Gen 2 Type-C Connector
Industry-Leading Gaming Audio: High Fidelity Audio With The Supremefx S1220A Codec, DTS Sound Unbound And Sonic Studio III Draws You Deeper Into The Game Action

Manufacturer	ASUS
Model Number	ROG STRIX Z490-G GAMING (WI-FI) 90MB1300-M0EAY0
Launch Date	May 2020
CPU Socket	LGA1200
Chipset Model	Intel Z490
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX Z490-G GAMING (WI-FI)
SKU Code	ROG STRIX Z490-G GAMING (WI-FI)
GTIN / EAN	192876680414
