Asus ROG STRIX Z690-E GAMING WIFI

Asus ROG STRIX Z690-E GAMING WIFI LGA1700 ATX DDR5 192 GB Motherboard

Asus Motherboard $316

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ690

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ROG STRIX Z690-E GAMING WIFI is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

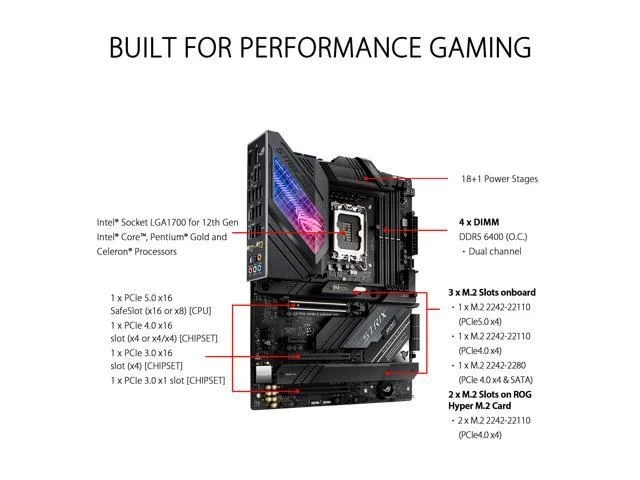

ASUS ROG Strix Z690-E Gaming WiFi 6E LGA 1700 Intel 12th Gen ATX Gaming Motherboard- PCIe 5.0, DDR5, 18+1 Power Stages, 2.5 Gb LAN, Bluetooth v5.2 Memory Standard: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. Number of Memory Slots: 4×288pin (DDR5) Audio Chipset: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only. PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD. PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 * Supports x4 mode. Onboard Video Chipset: Supported only by CPU with integrated graphi…

Manufacturer	Asus
Model Number	ROG STRIX Z690-E GAMING WIFI STRIX Z690-E GAMING WIFI 90MB18J0-M0EAY0 90MB18J0-M0AAY0 90MB18J0-M2AAY0
Launch Date	N/A
CPU Socket	LGA1700
Chipset Model	Intel Z690
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX Z690-E GAMING WIFI
SKU Code	ROG STRIX Z690-E GAMING WIFI
GTIN / EAN	195553494632
