ASUS ROG Strix Z790-E Gaming WiFi II

ASUS ROG Strix Z790-E Gaming WiFi II LGA1700 ATX DDR5 192 GB Motherboard

Asus Motherboard $359.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorATX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Strix Z790-E Gaming WiFi II is a ATX motherboard for LGA1700. It supports DDR5 memory up to 8000 MT/s (OC).

Intel LGA 1700 Socket: Ready for Intel Socket LGA1700 for Intel Core 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

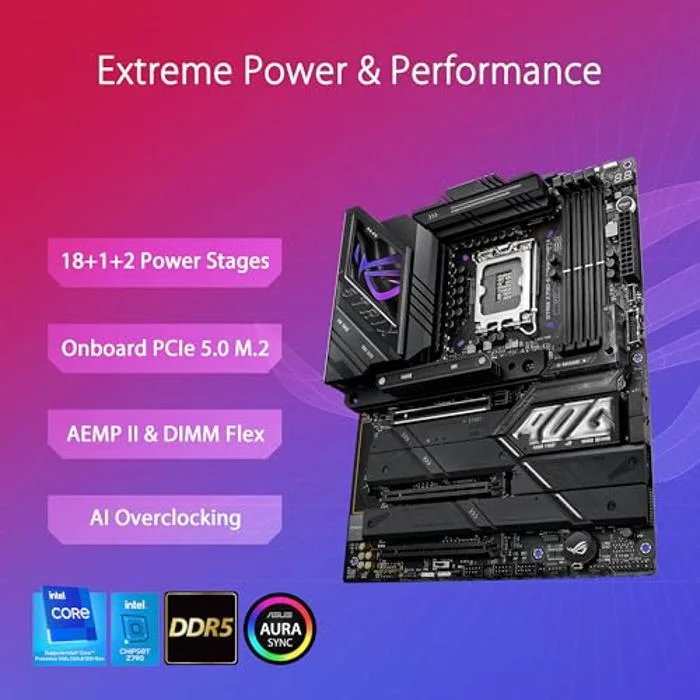

Robust Power Solution: 18(110A)+1(110A)+2 power solution with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

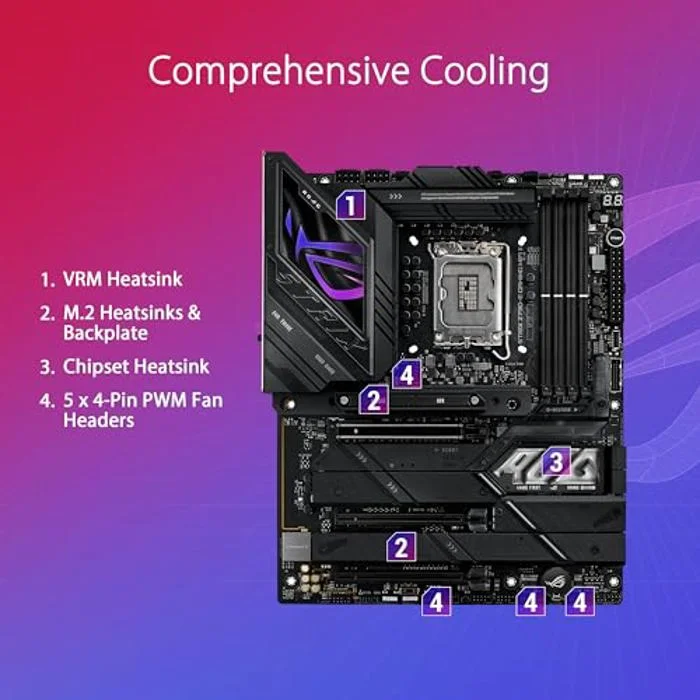

Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and are connected with an L-shaped heatpipe
Next-Gen M.2 Support: PCIe 5.0 M.2 slot with Combo-Sink U-shaped Direct Contact heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks
Abundant Connectivity: USB 20Gbps rear I/O port and front-panel connector with PD 3.0 up to 30W, eleven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4

Manufacturer	ASUS
Model Number	ROG STRIX Z790-E GAMING WIFI II 90MB1FC0-M0EAY0 90MB1FC0-M0AAY0 90MB1FC0-MVAAY0
Launch Date	October 2023
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	ATX
Supported Memory Type	DDR5
DIMM Slots	4
Maximum RAM Capacity	192 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	3 × PCIe x16
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2280 - M Key, 2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	7 (802.11be)
Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	3
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX Z790-E GAMING WIFI II
SKU Code	ROG STRIX Z790-E GAMING WIFI II
GTIN / EAN	197105357341
