Asus ROG STRIX Z790-I GAMING WIFI

Asus ROG STRIX Z790-I GAMING WIFI LGA1700 Mini-ITX DDR5 96 GB Motherboard

Asus Motherboard $393.96

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketLGA1700

ChipsetZ790

Form FactorMini-ITX

MemoryDDR5

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

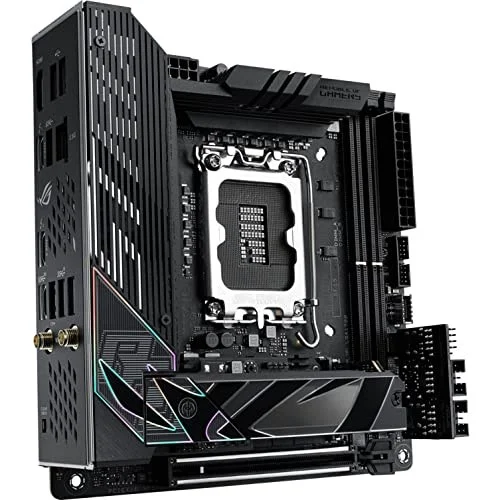

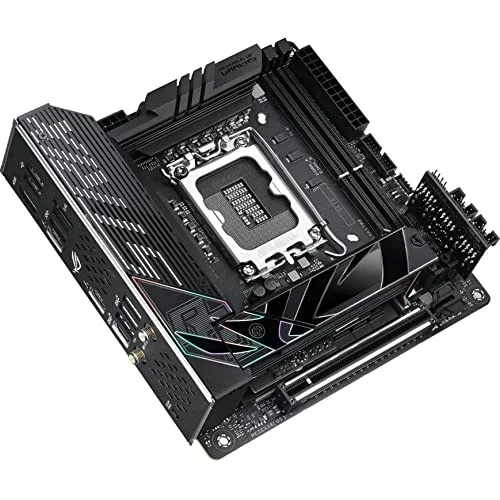

The Asus ROG STRIX Z790-I GAMING WIFI is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).

ASUS ROG Strix Z790-I Gaming WiFi 6E LGA 1700 (Intel13th&12th Gen) mini-ITX gaming motherboard (PCIe 5.0,DDR5,10+1 power stages,Thunderbolt 4,2.5 Gb LAN,USB 3.2 Gen 2x2 front panel Type-C,2x M.2/NVMe SSD) Memory Standard: DDR5 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 * * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC4050 PCI Express 5.0 x16: Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode). Max LAN Speed: 1 x Intel 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard

Manufacturer	Asus
Model Number	ROG STRIX Z790-I GAMING WIFI 90MB1CM0-M0AAY0
Launch Date	October 2022
CPU Socket	LGA1700
Chipset Model	Intel Z790
Board Size / Form Factor	Mini-ITX
Supported Memory Type	DDR5
DIMM Slots	2
Maximum RAM Capacity	96 GB
Valid DDR4 Speeds	DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2280 - M Key, 2242 / 2260 / 2280 - M Key
SATA III Ports	2 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	6E (802.11ax, 6 GHz)

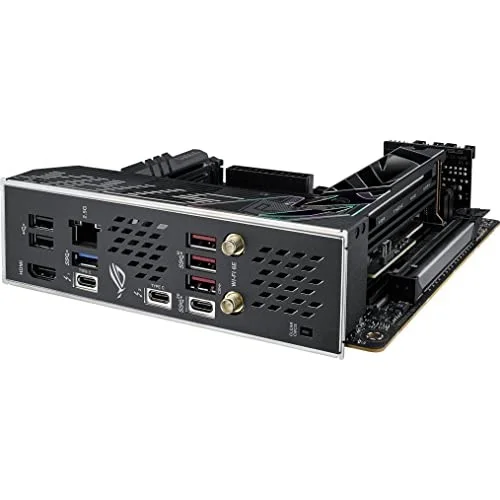

Rear-Panel USB	USB 3.2 Gen2x2, USB 3.2 Gen1
Internal USB 3.2 Gen 2x2 Headers	1
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	0
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	No
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG STRIX Z790-I GAMING WIFI
SKU Code	ROG STRIX Z790-I GAMING WIFI
GTIN / EAN	195553947497
