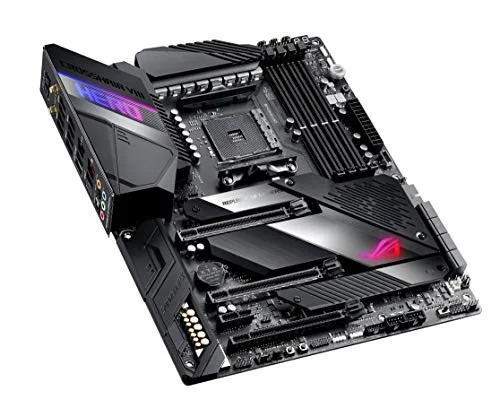

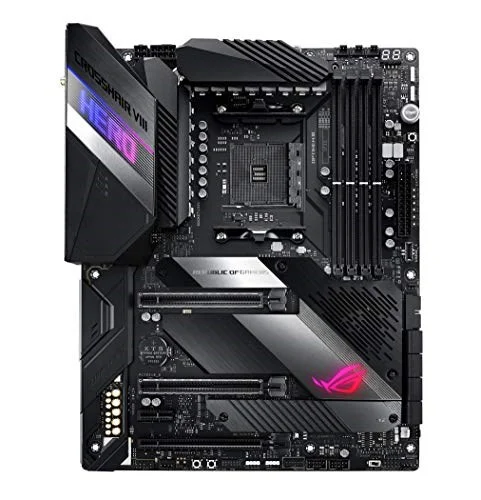

Asus ROG X570 Crosshair VIII Hero (Wi-Fi)

Asus ROG X570 Crosshair VIII Hero (Wi-Fi) AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $292.04

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetX570

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus ROG X570 Crosshair VIII Hero (Wi-Fi) is a ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).

AMD AM4 Socket: Ready For 2Nd, And 3Rd Gen AMD Ryzen Processors And Up To Two M. 2 Drives, USB 3. 2 Gen2, And AMD Storemi To Maximize Connectivity And Speed.
Comprehensive Thermal Design: Active PCH Heatsink, M. 2 Aluminum Heatsink And ROG Cooling Zone.
High-Performance Networking: On-Board Wi-Fi 6 (802. 11Ax) With MU-MIMO Support, 2. 5 Gaps Ethernet And Gigabit Ethernet, Both With Asus Languard Protection, And Support For Gamefirst V Software.
5-Way Optimization: Automated System-Wide Tuning, Providing Overclocking And Cooling Profiles That Are Tailor Made For Your Rig.
DIY Friendly Design: Pre-Mounted I/O Shield, Asus Safeslot, BIOS Flashback And Premium Components For Maximum Endurance.

Manufacturer	ASUS
Model Number	ROG Crosshair VIII Hero (WI-FI) 90MB10T0-MVAAY0 90MB10T0-M0AAY0
Launch Date	July 2019
CPU Socket	AMD Socket AM4
Chipset Model	Intel X570
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4533 / DDR4-4600 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	3
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	2 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)

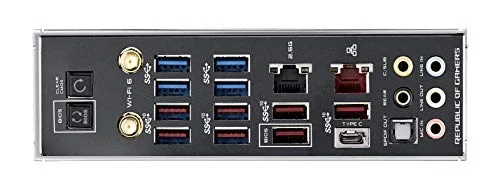

Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG Crosshair VIII Hero (WI-FI)
SKU Code	ROG Crosshair VIII Hero (WI-FI)
GTIN / EAN	192876378502
