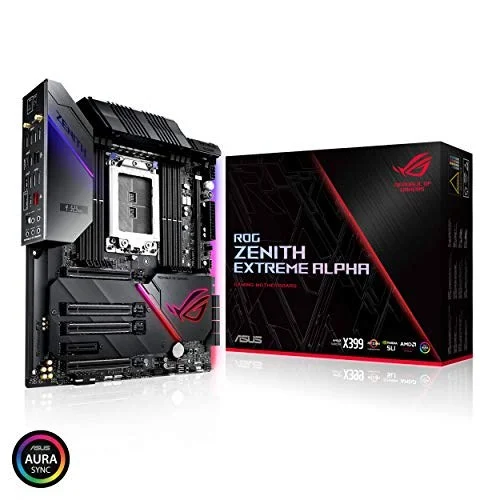

ASUS ROG Zenith Extreme Alpha

ASUS ROG Zenith Extreme Alpha sTR4 EATX DDR4 128 GB Motherboard

Asus Motherboard $499.99

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTR4

ChipsetX399

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Zenith Extreme Alpha is a EATX motherboard for sTR4. It supports DDR4 memory up to 3600 MT/s (OC).

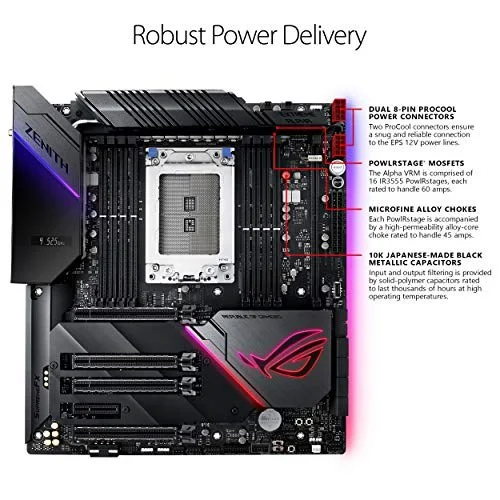

Powered by AMD Ryzen Threadripper 2 (TR4) processors to maximize connectivity and speed with support for up to 128GB of DDR4 memory, three NVMe M.2 drives and front panel USB 3.1 Gen2
5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance

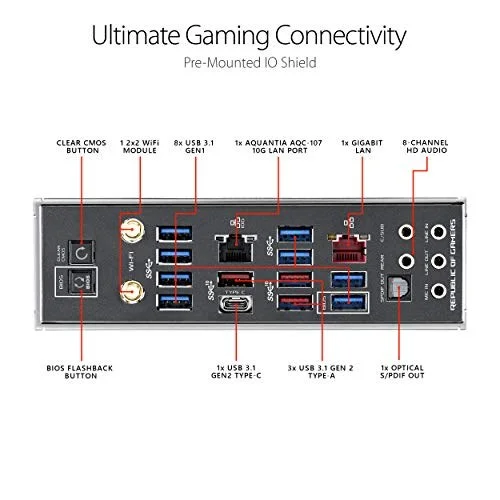

1. Built for high performance networking featuring onboard Aquantia 10G LAN, Intel Gigabit LAN and ASUS LANGuard and GameFirst V technologies
Rog DIMM.2 allows for expansion of 2 m.2 SSDs and has two heatsinks TO prevent throttling; 10K Black Metallic Capacitors
Full customization with a 1.3" livedash OLED and ASUS Aura Sync RGB lighting via two addressable headers and ONE RGB header

Manufacturer	ASUS
Model Number	ROG ZENITH EXTREME ALPHA
Launch Date	January 2019
CPU Socket	sTR4
Chipset Model	Intel X399
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	4 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	4
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	Yes
Wi-Fi Standard	5
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	ROG ZENITH EXTREME ALPHA
SKU Code	ROG ZENITH EXTREME ALPHA
GTIN / EAN	192876233160
