ASUS ROG Zenith II Extreme

ASUS ROG Zenith II Extreme sTRX4 EATX DDR4 256 GB Motherboard

Asus Motherboard $1654.62

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTRX4

ChipsetTRX40

Form FactorEATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS ROG Zenith II Extreme is a EATX motherboard for sTRX4. It supports DDR4 memory up to 4600 MT/s (OC).

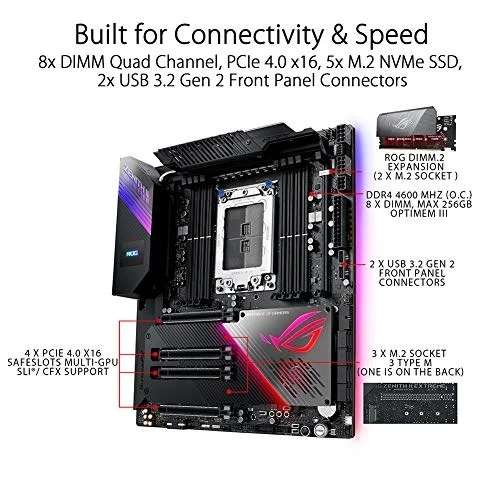

Ready For AMD 3Rd Gen Ryzen Threadripper Processors: Maximize Connectivity And Speed With Up To Five M.2 Drives, USB3.2 Gen2x2 And AMD Storemi

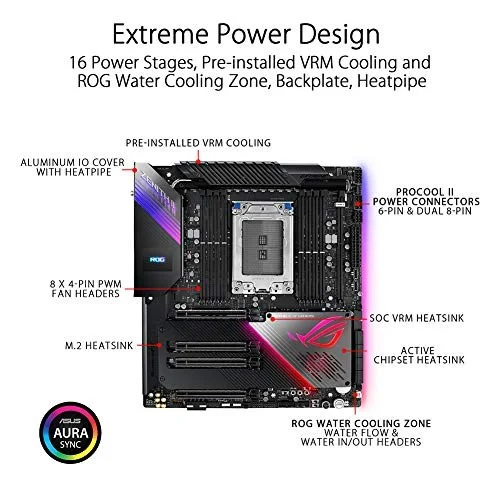

Robust Power Delivery: Optimized Power Solution With 16 Infineon TDA21472 Power Stages, Procool II Power Connectors, Microfine Alloy Chokes And 10K Capacitors
Comprehensive Thermal Design: Active-Cooling VRM Heatsink, Pcie-Zone M.2 Aluminum Heatsink, Backplate, Fan Extension Card II And Water-Cooling Zone

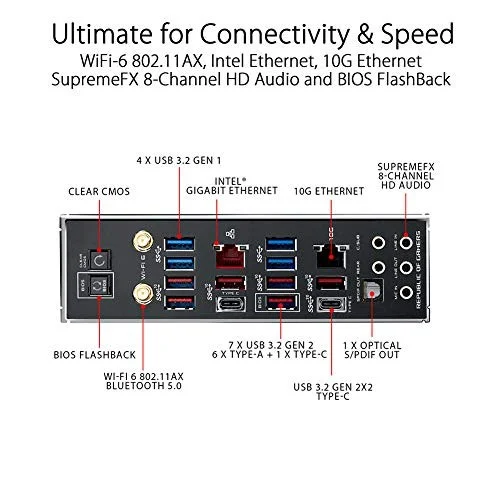

High-Performance Networking: Onboard Aquantia 10 Gbps Ethernet, Wi-Fi 6 (802.11Ax) With MU-MIMO Support, And Gamefirst V Technology

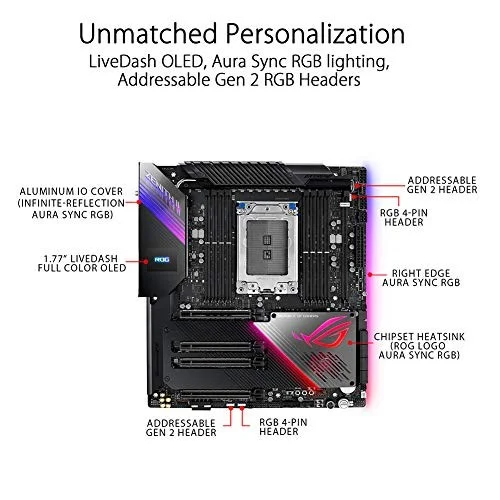

Unmatched Personalization: Color OLED Display And ASUS-Exclusive Aura Sync RGB Lighting, Including Two Additional RGB Headers And Two Addressable Headers
Industry-Leading ROG Audio: Supremefx S1220 And ESS SABRE9018Q2C For Enthusiast-Grade Audio Performance, Featuring Japanese Capacitors
DIY-Friendly Design: Pre-Mounted I/O Shield, ASUS Safeslot, BIOS Flashback And Flexkey

Manufacturer	ASUS
Model Number	Zenith II Extreme ROG Zenith II Extreme 90MB14K0-M0EAY0
Launch Date	November 2019
CPU Socket	sTRX4
Chipset Model	TRX40
Board Size / Form Factor	EATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	4 × PCIe x16
PCIe x16 (Qty)	4
PCIe x4 (Qty)	0
PCIe x1 (Qty)	0
M.2 Slot Count	5 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	2
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Zenith II Extreme
SKU Code	Zenith II Extreme
GTIN / EAN	192876456477
