ASUS Strix TRX40-E Gaming

ASUS Strix TRX40-E Gaming sTRX4 ATX DDR4 256 GB Motherboard

Asus Motherboard $319.6

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketsTRX4

ChipsetTRX40

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS Strix TRX40-E Gaming is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).

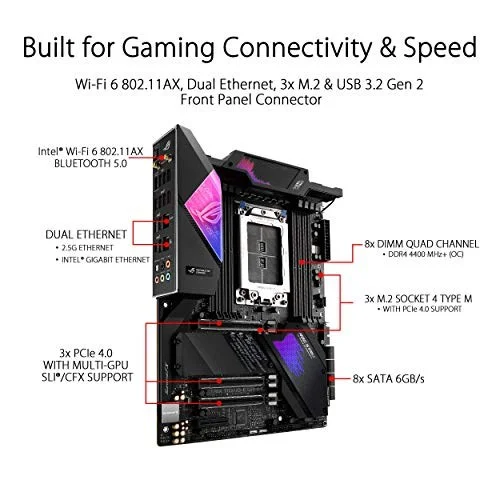

Ready For The Latest 3Rd Gen AMD Ryzen Threadripper Series Processors To Maximize Connectivity And Speed With Up To Three M.2 Drives, USB 3.2 Gen 2.

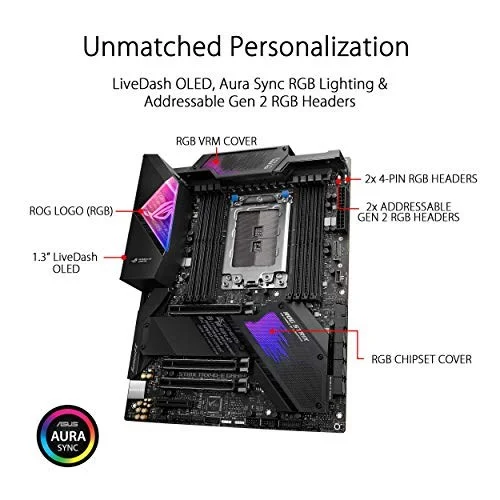

Unmatched Personalization: OLED And Aura Sync RGB Lighting, Including RGB Headers And Addressable Gen 2 RGB Headers

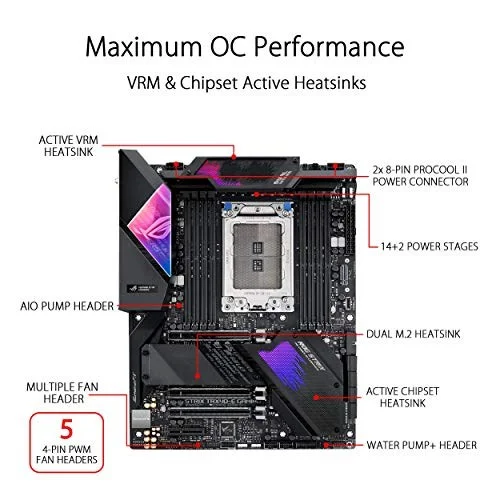

Optimal Power Solution: 16 Power Stages With Procool II Power Connector, High-Quality Chokes And Durable Capacitors To Support Multi-Core Processors
Comprehensive Cooling: Active Cooling VRM And Chipset Heatsink, Stacked-Fin Heatsink, With On-Board Dual M.2 Heatsinks And A Water Pump+ Header
Gaming Connectivity: Three M.2, USB 3.2 Gen 2 Type-C Port And Type-C Front Panel Connector

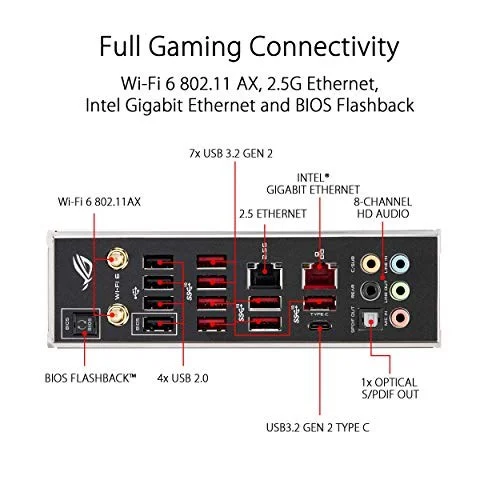

Gaming Networking: 2.5Gbps LAN And Intel Gigabit Ethernet With Asus Languard, Wi-Fi 6 (802.11Ax) With MU-MIMO, And Gateway Teaming Via Gamefirst V
Gaming Audio: High Fidelity Audio With Supremefx S1220, DTS Sound Unbound And Sonic Studio III To Draw You Deeper Into The Action
Easy DIY: Rog-Patented Pre-Mounted I/O Shield, Flexkey, Asus Safe Slot, Asus Node Connector And BIOS Flashback For A Friendlier Building Experience

Manufacturer	ASUS
Model Number	Strix TRX40-E Gaming ROG Strix TRX40-E Gaming TRX40-E Gaming
Launch Date	November 2019
CPU Socket	sTRX4
Chipset Model	TRX40
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	8
Maximum RAM Capacity	256 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3733 / DDR4-3800 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4600 / DDR4-4666 (OC)
ECC Memory Support	Yes * ECC memory support also depends on the CPU memory controller
Expansion Slots (PCIe)	3 × PCIe x16, 1 × PCIe x4
PCIe x16 (Qty)	3
PCIe x4 (Qty)	1
PCIe x1 (Qty)	0
M.2 Slot Count	3 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	8 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	Yes
Wi-Fi Standard	6 (802.11ax)
Rear-Panel USB	USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	1
Internal USB 3.2 Gen 1 Headers	2
Internal USB 2.0 Headers	2
NVIDIA SLI	Yes
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	Strix TRX40-E Gaming
SKU Code	Strix TRX40-E Gaming
GTIN / EAN	192876537107
