ASUS TUF B450-Plus

ASUS TUF B450-Plus AM4 ATX DDR4 128 GB Motherboard

Asus Motherboard $98.74

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

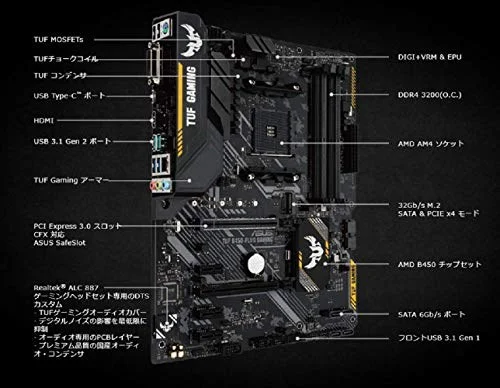

The ASUS TUF B450-Plus is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

2Nd Generation AMD Ryzen AM4 Processors Maximize Connectivity And Speed With Nvme M.2, USB 3.1 Gen2 And Gigabit LAN

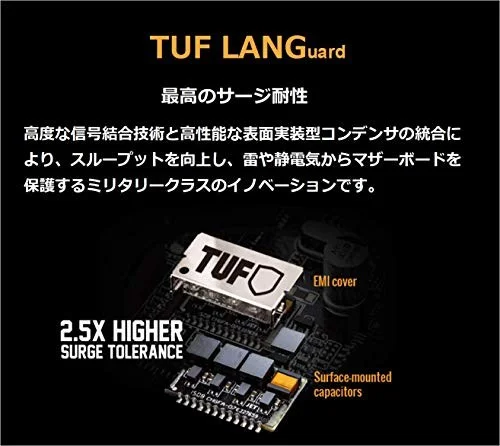

Military-Grade TUF Components Like TUF Languard, TUF Chokes, TUF Capacitors, And TUF Mosfets Maximize Durability

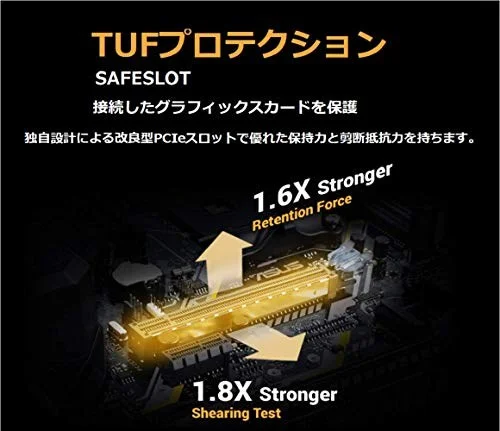

TUF Protection With Safe Slot And Overvoltage Protection Ensures Component Stability And Dependability
Unmatched Personalization With ASUS Exclusive Aura Sync RGB Lighting And Additional RGB Header
3-Year Warranty For Guaranteed Reliability Built On Military-Grade Engineering

Manufacturer	ASUS
Model Number	B450-PLUS GAMING TUF B450-PLUS GAMING 90MB0YM0-M0EAY0
Launch Date	November 2018
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-4400 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 3 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	3
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	GbE LAN
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450-PLUS GAMING
SKU Code	B450-PLUS GAMING
GTIN / EAN	192876075944
