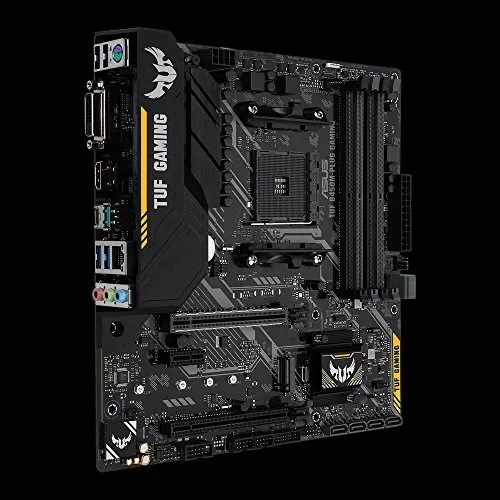

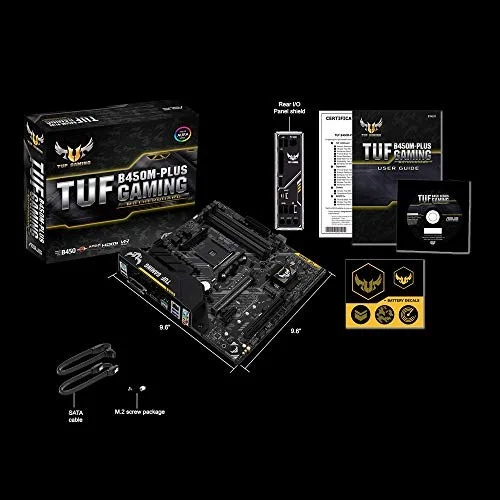

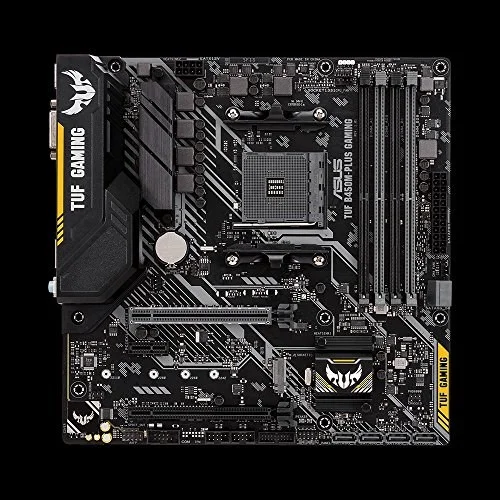

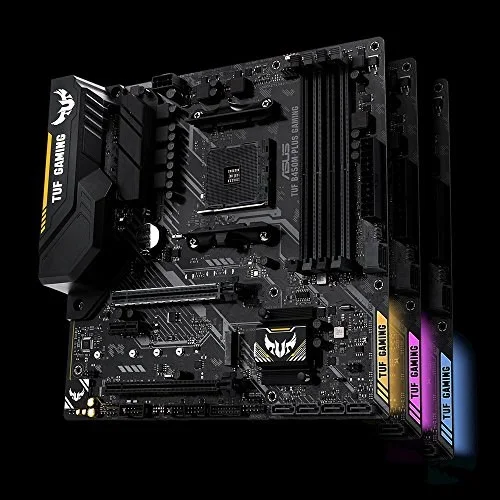

Asus TUF B450M-PLUS

Asus TUF B450M-PLUS AM4 Micro-ATX DDR4 64 GB Motherboard

Asus Motherboard $69.98

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetB450

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The Asus TUF B450M-PLUS is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

64GB Dual DDR4-SDRAM
Micro ATX form factor
Ports: 1 x PS/2 keyboard/mouse, 1 x DVI-D, 1 x HDMI, 1 x LAN (RJ45), 1 x USB3.1 Gen2 Type-A, 1 x USB3.1 Gen1 Type-C, 2 x USB2.0, 2 x USB3.1 Gen1, 3 x Audio jacks
Chipset: AMD B450
Backed by 3 years manufacturers warranty

Manufacturer	ASUS
Model Number	B450M-PLUS GAMING TUF B450M-PLUS GAMING 90MB0YQ0-M0EAY0
Launch Date	N/A
CPU Socket	AMD Socket AM4
Chipset Model	Intel B450
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	64 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	2 × PCIe x16, 1 × PCIe x1
PCIe x16 (Qty)	2
PCIe x4 (Qty)	0
PCIe x1 (Qty)	1
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 / 22110 - M Key
SATA III Ports	6 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	Yes
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	B450M-PLUS GAMING
SKU Code	B450M-PLUS GAMING
GTIN / EAN	4718017020428
