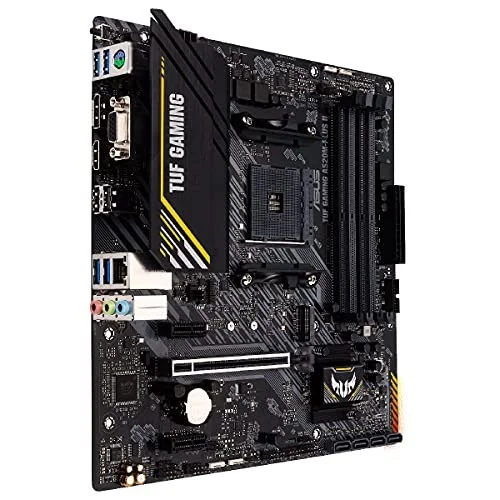

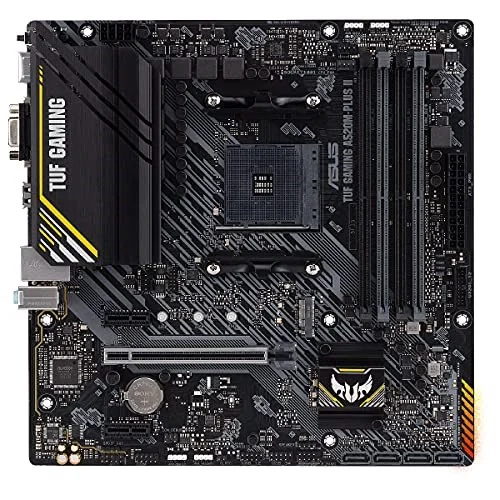

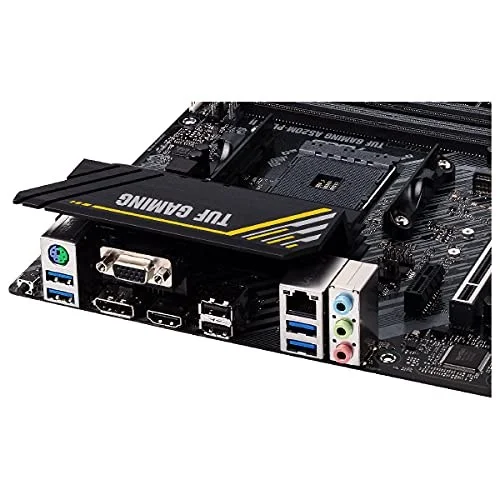

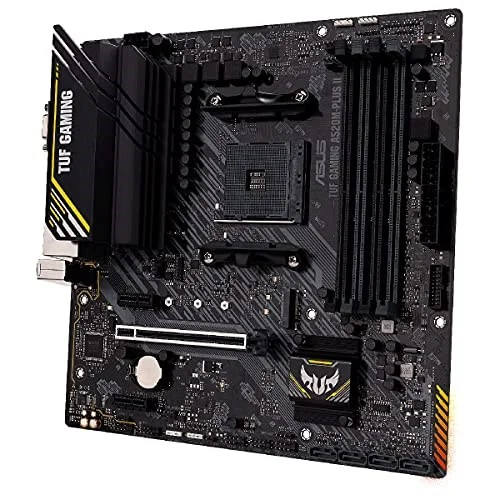

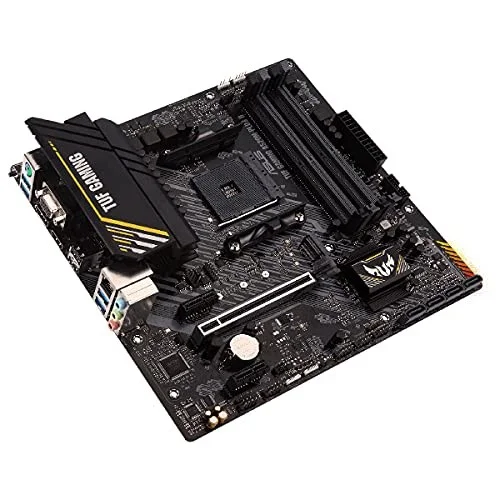

ASUS TUF GAMING A520M-PLUS II

ASUS TUF GAMING A520M-PLUS II AM4 Micro-ATX DDR4 128 GB Motherboard

Asus Motherboard $133.63

Compare seller pricing, scan the quick specs, and size this part up before adding it to your next build.

SocketAM4

ChipsetA520

Form FactorMicro-ATX

MemoryDDR4

Retailer links open in a new tab. Pricing can change quickly, so treat this page as a shortlist and confirm the final price with the seller.

Retailers

Live seller links for quick price checks.

PC Builder may earn a small commission when you buy through links on our site.

Prices and availability can change without notice and are confirmed at checkout with the seller.

The ASUS TUF GAMING A520M-PLUS II is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).

Manufacturer	ASUS
Model Number	TUF GAMING A520M-PLUS II 90MB17G0-M0EAY0
Launch Date	April 2021
CPU Socket	AMD Socket AM4
Chipset Model	Intel A520
Board Size / Form Factor	Micro-ATX
Supported Memory Type	DDR4
DIMM Slots	4
Maximum RAM Capacity	128 GB
Valid DDR4 Speeds	DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC)
ECC Memory Support	No
Expansion Slots (PCIe)	1 × PCIe x16, 2 × PCIe x1
PCIe x16 (Qty)	1
PCIe x4 (Qty)	0
PCIe x1 (Qty)	2
M.2 Slot Count	1 × M.2
M.2 Device Compatibility	2242 / 2260 / 2280 - M Key
SATA III Ports	4 × SATA 6Gbps
SATA Express Ports	0
Wired Networking (LAN)	N/A
Onboard Wi-Fi	No
Wi-Fi Standard	N/A
Rear-Panel USB	USB 3.2 Gen1, USB 2.0
Internal USB 3.2 Gen 2x2 Headers	0
Internal USB 3.2 Gen 2 Headers	0
Internal USB 3.2 Gen 1 Headers	1
Internal USB 2.0 Headers	2
NVIDIA SLI	No
AMD CrossFire	No
RAID Capability	Yes
Back-Connect Layout	No
Manufacturer Part Number (MPN)	TUF GAMING A520M-PLUS II
SKU Code	TUF GAMING A520M-PLUS II
GTIN / EAN	4711081154457
